WIRE HARNESS FOR SCOUT FROM 2015

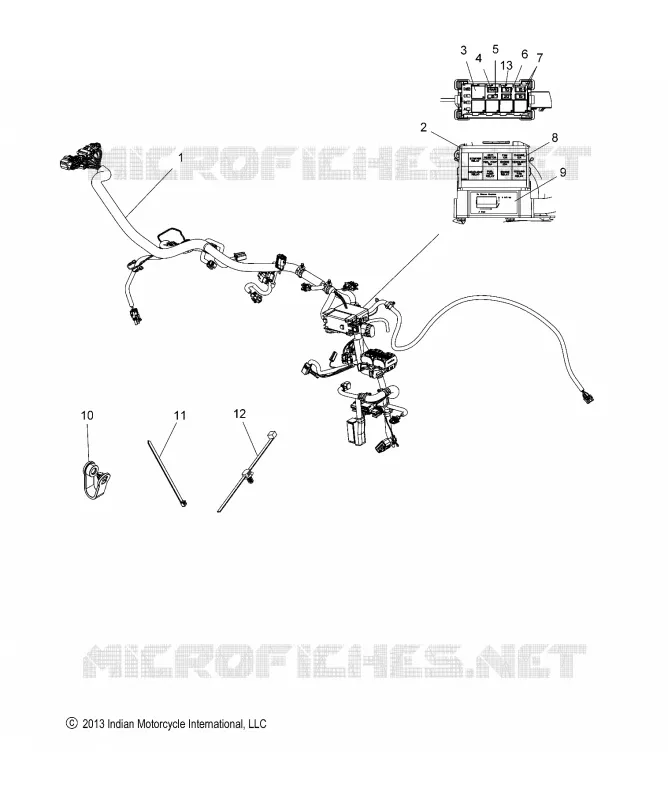

WIRE HARNESS

1

FUSE ATC 40A

4012421

£41,89 Unit Price incl. VAT

1

HARNESS CHASSIS MID

2413017

£826,24 Unit Price incl. VAT

1

HARNESS CHASSIS MID ABS [INTL]

2413018

£930,76 Unit Price incl. VAT

1

COVER DIAGNOSTIC W/CLIP

4012170

£12,40 Unit Price incl. VAT

2

COVER RELAY/FUSE CENTER

5438758

£15,55 Unit Price incl. VAT

3

RELAY SPST SERIES 303

4011283

£41,89 Unit Price incl. VAT

4

RESISTOR 68 OHM MINI

4013062

£53,86 Unit Price incl. VAT

5

FUSE MINI BLADE 15 AMP

2410280

£11,02 Unit Price incl. VAT

6

BREAKER CIRCUIT 20 AMP

4011372

£53,86 Unit Price incl. VAT

7

BREAKER CIRCUIT 15 AMP

4011406

£82,03 Unit Price incl. VAT

8

DECAL FUSEBOX

7179867

£1,45 Unit Price incl. VAT

9

DECAL FUSE BOX REMOVAL

7171031

£0,10 Unit Price incl. VAT

10

CLAMP ROUTING

7081920

£24,48 Unit Price incl. VAT

11

PANDUIT STRAP

7080138

£2,37 Unit Price incl. VAT

12

CLIP-ROUTING

7081496

£5,63 Unit Price incl. VAT

13

BREAKER CIRCUIT 10 AMP

4011371

£23,93 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
