ENGINE, PISTON AND CRANKSHAFT FOR CHALLENGER DARK HORSE FROM 2020

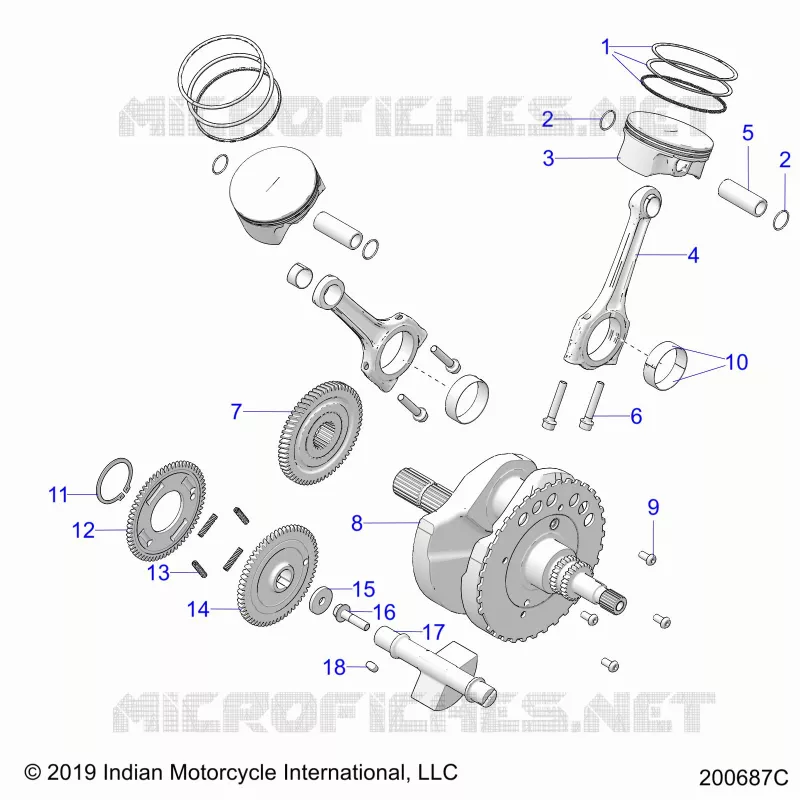

ENGINE, PISTON AND CRANKSHAFT

1

K-RINGS PISTON 108

2208615

£71,09 Unit Price incl. VAT

2

CIRCLIP 23MM

7710792

£6,57 Unit Price incl. VAT

3

ASM. PISTON 108MM [INCL. 1-3 5]

3022800

£204,09 Unit Price incl. VAT

3

PISTON-108MM

3022801

£204,09 Unit Price incl. VAT

4

ASM. CON ROD 176MM [INCL. 7]

3023656

£287,82 Unit Price incl. VAT

5

PIN-PISTON 23MM

3022802

£40,80 Unit Price incl. VAT

6

BOLT-CON ROD MJ9X1.0X50

7520202

£10,60 Unit Price incl. VAT

7

GEAR-CRANK/BALANCE SHAFT

6230900

£114,17 Unit Price incl. VAT

8

ASM. CRANKSHAFT [INCL. 9]

3023366

£980,54 Unit Price incl. VAT

9

SCREW

7517484

£5,63 Unit Price incl. VAT

10

BEARING-LOWER CON ROD 54MM

3514899

£24,48 Unit Price incl. VAT

11

RING RETAINING

7710791

£3,27 Unit Price incl. VAT

12

ASM. GEAR BALANCE SHAFT [INCL. 11-14]

1333935

£152,24 Unit Price incl. VAT

13

SPRING-SPLIT GEAR

7044661

£5,63 Unit Price incl. VAT

14

GEAR BALANCE SHAFT

6230805

£247,39 Unit Price incl. VAT

15

WASHER CAM RETAINING

7556871

£8,45 Unit Price incl. VAT

16

SCREW

7519763

£6,57 Unit Price incl. VAT

17

SHAFT-BALANCE

5139844

£266,89 Unit Price incl. VAT

18

KEY

7710708

£7,51 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
