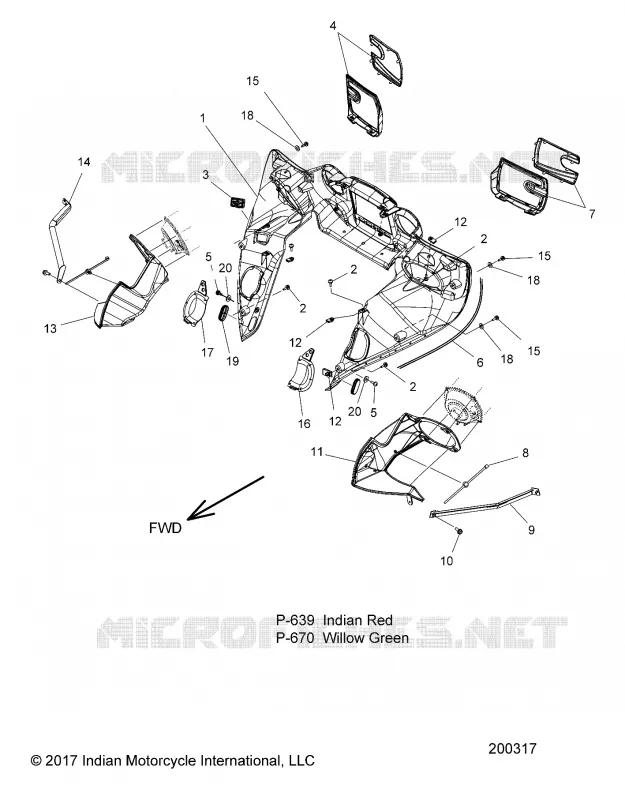

FAIRING ASM 3
1
2
2
2
2
3
4
5
5
6
7
8
9
10
11
12
12
12
13
14
15
15
15
16
17
18
18
18
19
20
20
1
DASH-INDIAN RED
5452568-639
£1 592,75 Unit Price incl. VAT
1
DASH-WILLOW GREEN
5452568-670
Not Available
2
SCREW-M4.2X1.40 12 HEX BUTT SHLD
7518518
£2,18 Unit Price incl. VAT
3
PLUG-GARAGE OPENER
5452573
£6,41 Unit Price incl. VAT
4
BEZEL-SPEAKER RH CHROME
5452572-156
£136,06 Unit Price incl. VAT
4
ASM.-GRILL SPEAKER RH CHROME (INCL. BEZEL AND SCREEN)
2636061-156
£115,12 Unit Price incl. VAT
4
SCREEN-SPEAKER RH FLT BLK
5261937-463
£60,15 Unit Price incl. VAT
5
SCREW
7519774
£5,46 Unit Price incl. VAT
6
TRIM-EDGE DASH
5522231
£35,90 Unit Price incl. VAT
7
SCREEN-SPEAKER LH FLT BLK
5261936-463
£60,15 Unit Price incl. VAT
7
BEZEL-SPEAKER LH CHROME
5452571-156
£136,06 Unit Price incl. VAT
7
ASM.-GRILL SPEAKER LH CHROME (INCL. BEZEL AND SCREEN)
2636060-156
£109,89 Unit Price incl. VAT
8
CLIP-ROUTING
7081496
£5,63 Unit Price incl. VAT
9
BRKT. SUPPORT FAIRING LH
5262620-329
£41,01 Unit Price incl. VAT
10
SCREW
7518591
£2,03 Unit Price incl. VAT
11
VOLUME SPEAKER LH
5451168
£63,39 Unit Price incl. VAT
12
NUT CLIP U SPEED
7547386
£3,27 Unit Price incl. VAT
13
VOLUME SPEAKER RH
5451169
£63,39 Unit Price incl. VAT
14
BRKT. SUPPORT FAIRING RH BLK
5261480-329
£41,01 Unit Price incl. VAT
15
SCREW
7519309
£8,45 Unit Price incl. VAT
16
COVER DRIVING LIGHT LH WILLOW GREEN
5452784-670
£141,29 Unit Price incl. VAT
16
COVER DRIVING LIGHT LH INDIAN RED
5452784-639
£141,29 Unit Price incl. VAT
17
COVER DRIVING LIGHT RH WILLOW GREEN
5452785-670
£141,29 Unit Price incl. VAT
17
COVER DRIVING LIGHT RH INDIAN RED
5452785-639
£141,29 Unit Price incl. VAT
18
WASHER
7556477
£4,37 Unit Price incl. VAT
19
COVER-WIND DEFLECTOR
5452801
£3,19 Unit Price incl. VAT
20
WASHER
7556305
£1,63 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
