ENGINE, PISTON AND CRANKSHAFT
5
Parts Diagram
Parts Catalog
BODY, LICENSE PLATE BRKT/REAR LIGHT HOUSING MOUNT
by
MIRRORSS

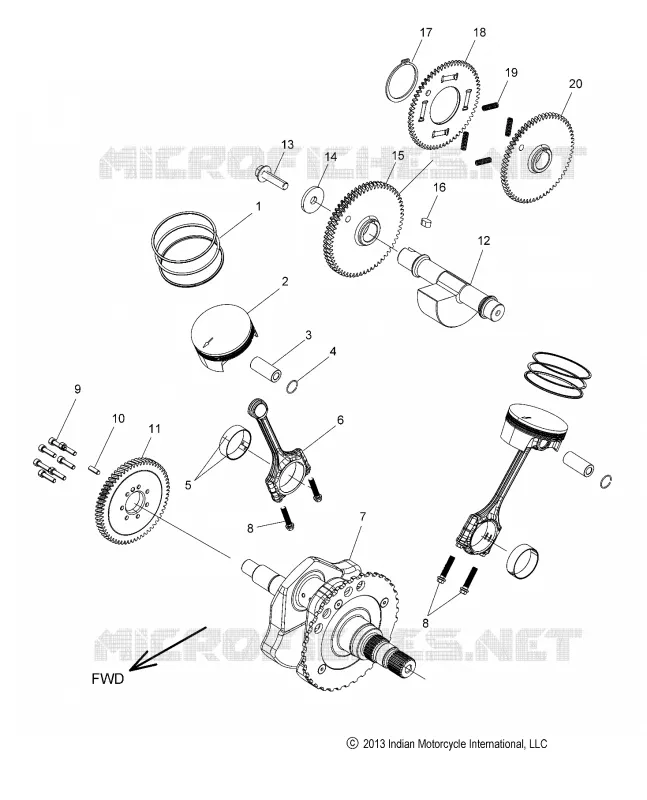

ENGINE, PISTON AND CRANKSHAFT
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
1
K-PISTON RINGS (1 SET OF 3)
2208507
£92,97 Unit Price incl. VAT
2
ASM. PISTON (INCL. 1-4)
3023066
£219,79 Unit Price incl. VAT
3
PIN-PISTON 22MM
3023324
£40,80 Unit Price incl. VAT
4
RING RETAINING
7710479
£8,45 Unit Price incl. VAT
5
BEARING CONNECTING ROD 52MM ORG.
3515097-002
£24,48 Unit Price incl. VAT
5
BEARING CONNECTING ROD 52MM BLK.
3515097-001
£24,48 Unit Price incl. VAT
5
BEARING CONNECTING ROD 52MM BLU
3515097-003
£24,48 Unit Price incl. VAT
6
ASM. CONNECTING ROD 184MM (INCL. BOLTS)
3023483
£303,52 Unit Price incl. VAT
7
ASM-CRANKSHAFT 56.5MM (N21TJDDB MODELS)(INCL. TIMING RING)
3023487
£990,49 Unit Price incl. VAT
8
BOLT CONNECTING ROD
7520356
£24,48 Unit Price incl. VAT
9
SCREW
7518995
£6,57 Unit Price incl. VAT
10
PIN SOLID
3234330
£8,45 Unit Price incl. VAT
11
GEAR BALANCE DRIVE
6230804
6237721
£233,12 Unit Price incl. VAT
12
SHAFT-BALANCE MACH
5141967
5144258
£94,46 Unit Price incl. VAT
13
SCREW
7519763
£6,57 Unit Price incl. VAT
14
WASHER CAM RETAINING
7556871
£8,45 Unit Price incl. VAT
15
ASM. GEAR BALANCER (INCL. 17-20)
1333423
1336998
£247,39 Unit Price incl. VAT
16
KEY
7710708
£7,51 Unit Price incl. VAT
17
RING RETAINING
7710791
7718426
£3,27 Unit Price incl. VAT
18
GEAR BALANCE SHAFT
6230805
1336998
£247,39 Unit Price incl. VAT
19
SPRING SPLIT GEAR
7044350
7044661
£5,63 Unit Price incl. VAT
20
GEAR BLANCE SHAFT BLASH
6230806
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
