1
Engine displacement
1100
2
Year
2015
3
Trim
scout
4
Parts Catalog
DRIVE TRAIN, CLUTCH
5
Parts Diagram
Parts Catalog
CHASSIS, SIDE STAND
by
DRIVE TRAIN, SHIFT FORKS, RATCHET AND DRUM

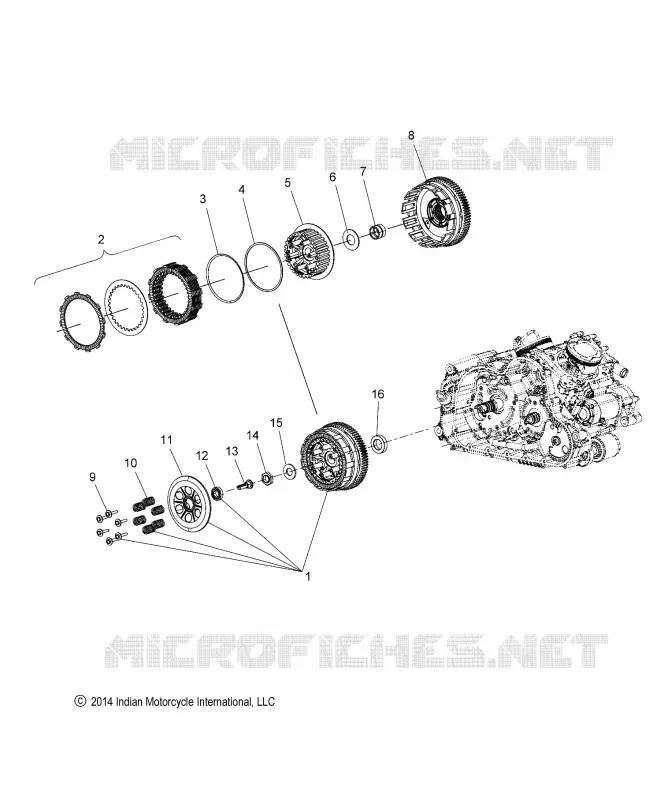

DRIVE TRAIN, CLUTCH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
ASM. CLUTCH
1333083
Not Available
2
ASM. CLUTCH PACK
2205196
£397,72 Unit Price incl. VAT
3
SPRING JUDDER CLUTCH
7044118
£71,09 Unit Price incl. VAT
4
SEAT JUDDER SPRING
5258192
£41,89 Unit Price incl. VAT
5
HUB CLUTCH INNER
5138941
£176,02 Unit Price incl. VAT
6
WASHER CLUTCH
7556798
£41,89 Unit Price incl. VAT
7
COLLAR BEARING
5138940
£52,20 Unit Price incl. VAT
8
ASM. BASKET OUTER
1333216
Not Available
9
SCREW
7519901
£5,63 Unit Price incl. VAT
10
SPRING CLUTCH 230N
7044119
7044758
£60,15 Unit Price incl. VAT
11
PLATE PRESSURE
5138999
£92,97 Unit Price incl. VAT
12
BEARING
3514819
£41,01 Unit Price incl. VAT
13
SHAFT CLUTCH LIFTER
6230582
£53,86 Unit Price incl. VAT
14
NUT
7547477
£16,32 Unit Price incl. VAT
15
WASHER
7556518
£10,60 Unit Price incl. VAT
16
SPACER CLUTCH
5138726
£24,48 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
