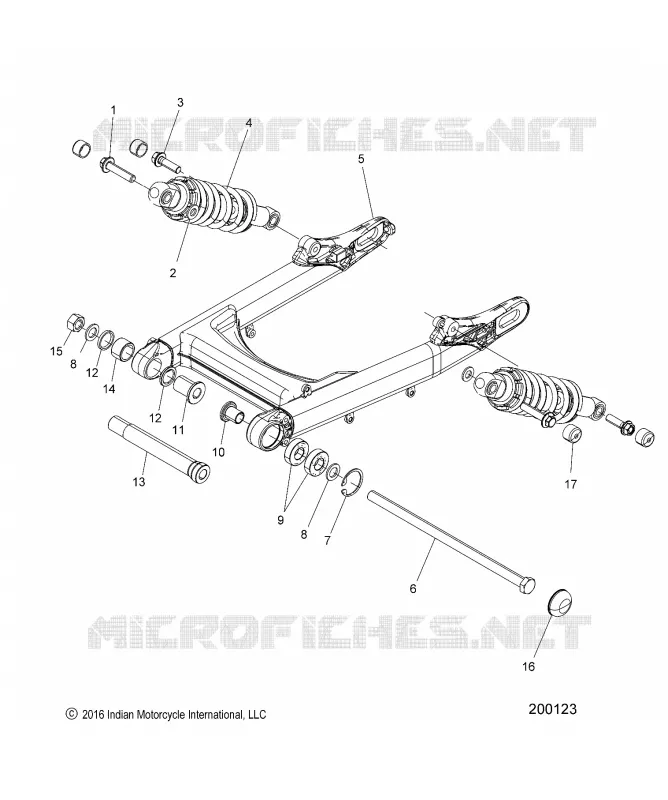

REAR SUSPENSION ASM., SWING ARM AND SHOCKS
5
Parts Diagram
Parts Catalog
HANDLEBAR ASSEMBLY
by
ENGINE, OIL SYSTEM
REAR SUSPENSION ASM., SWING ARM AND SHOCKS
1
2
3
4
5
5
6
7
8
9
10
11
12
12
13
14
15
16
17
1
SCREW HXFLG
7520166
£13,87 Unit Price incl. VAT
2
WASHER
7556287
£8,45 Unit Price incl. VAT
3
SCREW HXFLG
7518878
£5,63 Unit Price incl. VAT
4
RETAINER SPRING
5263546
£52,20 Unit Price incl. VAT
4
SPRING-DUAL RATE BLK
7044754-266
£151,76 Unit Price incl. VAT
4
COVER SHOCK [INTL ONLY]
5415436
£29,92 Unit Price incl. VAT
4
ASM-SHOCK REAR DR N BLK
1543748-266
£366,32 Unit Price incl. VAT
4
ASM-DAMPER [SHOCK ONLY]
1543761
£397,72 Unit Price incl. VAT
5
ASM. SWINGARM [INCL. 7 9 12 14]
1824356
£376,79 Unit Price incl. VAT
6
SCREW HH
7519929
£40,80 Unit Price incl. VAT
7
RING RETAINING INTERNAL
7670149
£8,45 Unit Price incl. VAT
8
WASHER
7556236
£8,45 Unit Price incl. VAT
9
BEARING BALL
3514414
£15,56 Unit Price incl. VAT
10
BUSHING SWINGARM BALL BRG.
5631478
£5,63 Unit Price incl. VAT
11
BUSHING SWINGARM
5139003
£28,56 Unit Price incl. VAT
12
SEAL
3610096
£12,24 Unit Price incl. VAT
13
PIVOT SWINGARM
5140159
Not Available
14
BEARING NEEDLE ROLLER
3514413
£20,40 Unit Price incl. VAT
15
NUT
7540001
£5,63 Unit Price incl. VAT
16
CAP-SWINGARM
5415909
£5,28 Unit Price incl. VAT
17
CAP-BOLT HEAD [INTL ONLY]
5451966
£8,26 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
