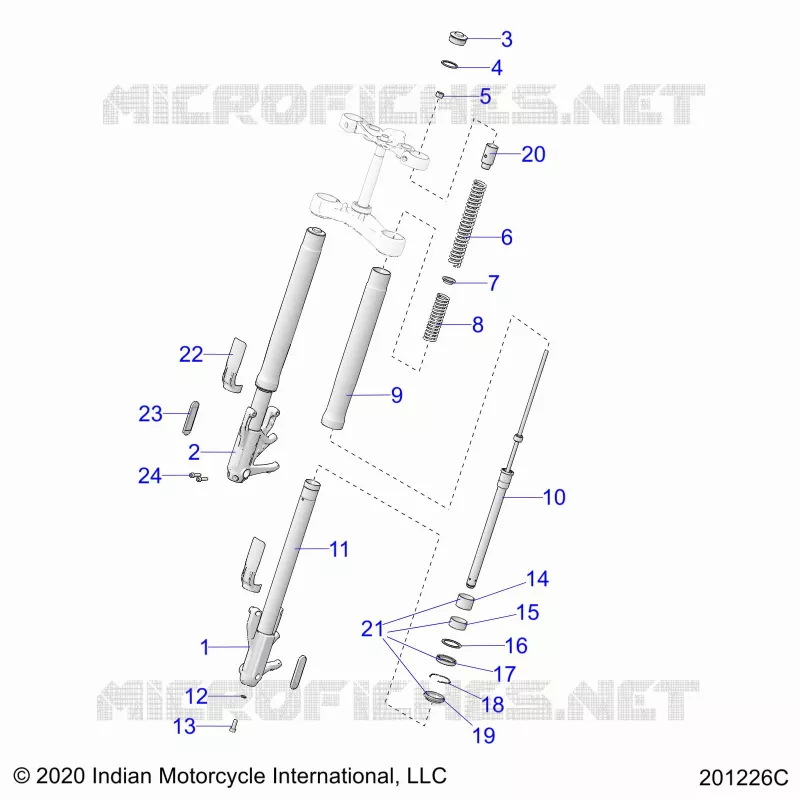

FRONT SUSPENSION FORKS FOR CHALLENGER ELITE FROM 2022

FRONT SUSPENSION FORKS

-

OIL-INDIAN FORK TYPE II QT(12)

2884244

£19,87 Unit Price incl. VAT

1

ASM-FORK LEG LH BLK (INCL. 3-21)

1825057-463

£1 428,50 Unit Price incl. VAT

2

ASM-FORK LEG RH BLK (INCL. 3-21)

1825058-463

£1 428,50 Unit Price incl. VAT

3

CAP

5143920

£109,89 Unit Price incl. VAT

4

O-RING

5417652

£36,72 Unit Price incl. VAT

5

NUT

7547446

£5,63 Unit Price incl. VAT

6

SPRING UPPER

7045684

£92,97 Unit Price incl. VAT

7

GUIDE SPRING LOWER

7556548

£8,88 Unit Price incl. VAT

8

SPRING LOWER

7045683

£53,86 Unit Price incl. VAT

9

TUBE OUTER

5143914

£355,85 Unit Price incl. VAT

10

CYLINDER COMP.

5143919

£235,49 Unit Price incl. VAT

11

TUBE COMP. INNER RH

5143916-463

£429,12 Unit Price incl. VAT

11

TUBE COMP. INNER LH

5143915-463

£429,12 Unit Price incl. VAT

12

PACKING

1500798

£9,64 Unit Price incl. VAT

13

SCREW

7519082

£6,57 Unit Price incl. VAT

14

PISTON

5143917

£36,72 Unit Price incl. VAT

15

METAL SLIDE

5143918

£28,56 Unit Price incl. VAT

16

WASHER

7558720

£9,79 Unit Price incl. VAT

17

SEAL OIL

3610372

Not Available

18

RING SNAP

7718409

£9,79 Unit Price incl. VAT

19

SEAL DUST

3610373

£36,72 Unit Price incl. VAT

20

SPACER

7558721

£20,40 Unit Price incl. VAT

21

KIT-SEALS AND BUSHINGS (INCL. 14 15 17 19)

2208826

£115,12 Unit Price incl. VAT

22

GUARD-FORK BLK

5455260

£13,16 Unit Price incl. VAT

23

REFLECTOR-AMBER OVAL [FROM 6/16/2020]

7185804

£35,90 Unit Price incl. VAT

24

SCREW

7517361

£24,48 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
