1
Engine displacement
1100
2
Year
2015
3
Trim
scout
4
Parts Catalog

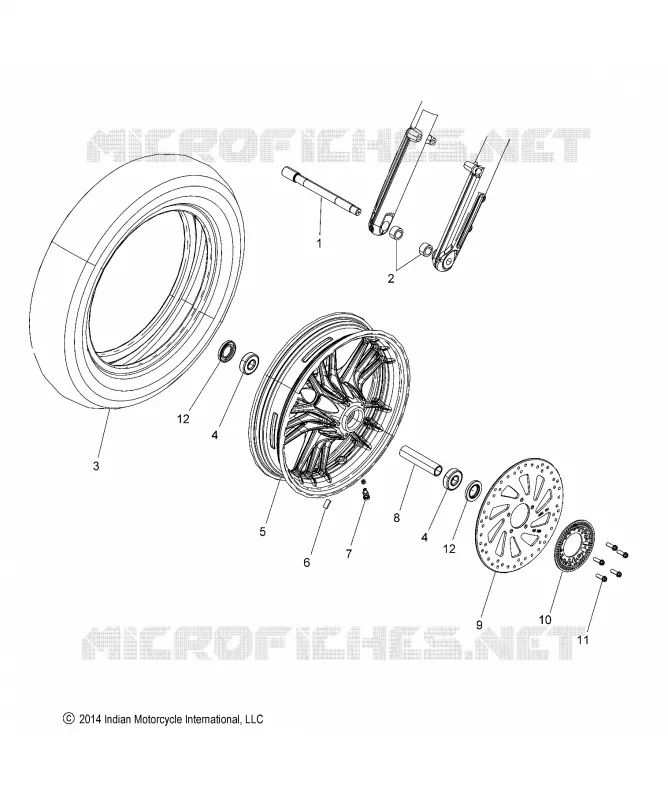

FRONT WHEEL
5
Parts Diagram
Parts Catalog
by
REAR WHEEL
FRONT WHEEL
1
2
3
4
4
5
6
7
8
9
10
11
12
12
1
AXLE FRONT
5138767
£32,64 Unit Price incl. VAT
2
SPACER BEARING REAR LH
5631479
£4,37 Unit Price incl. VAT
3
TIRE FRONT 130/90-16
5414554
5415575
£128,45 Unit Price incl. VAT
4
BEARING
3514405
£20,40 Unit Price incl. VAT
5
WHEEL FRONT 16 IN. CAST BLK [INCL. 4 7 8]
1522090-266
£577,37 Unit Price incl. VAT
6
WEIGHT STEEL 5 G BLK
1521682
Not Available
7
VALVE RIM
1521312
£13,05 Unit Price incl. VAT
8
SPACER WHEEL
5337827
£20,40 Unit Price incl. VAT
9
ROTOR
1912076
£120,36 Unit Price incl. VAT
10
RING TONE ABS [ABS MODELS ONLY]
5257890
£71,09 Unit Price incl. VAT
11
SCREW
7518661
7521014
£2,18 Unit Price incl. VAT
12
SEAL
3610094
£32,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
