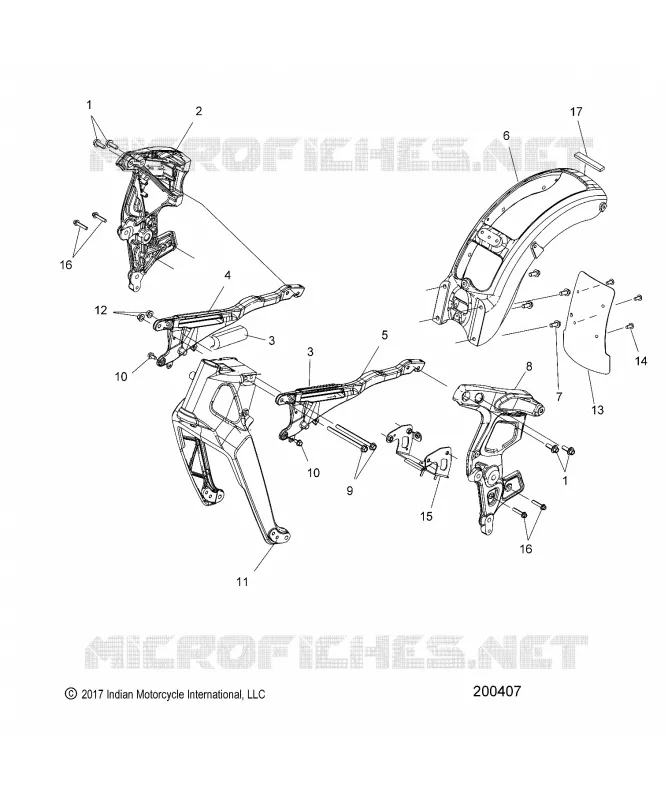

CHASSIS, FRAME

SCREW

7520148

£10,60 Unit Price incl. VAT

FRAME MID RH JT BLK [SEE INSIDE FRAME FOR CORRECT P/N]

5141434-626

£507,62 Unit Price incl. VAT

FOAM AIRBOX/FRAME

5522047

£6,41 Unit Price incl. VAT

BACKBONE-CAST RH ECOAT [FROM 4/14/22]

5633875-329

£188,39 Unit Price incl. VAT

BACKBONE-CAST RH WRNKL BLK [TO 4/14/22]

5633875-626

£198,86 Unit Price incl. VAT

BACKBONE-CAST LH ECOAT [FROM 4/14/22]

5633874-329

£188,39 Unit Price incl. VAT

BACKBONE-CAST LH WRNKL BLK [TO 4/14/22]

5633874-626

£198,86 Unit Price incl. VAT

FRAME SUBFRAME REAR JT BLK TX

5138838-626

£444,82 Unit Price incl. VAT

SCREW

7518908

£2,18 Unit Price incl. VAT

FRAME MID LH JT BLK [SEE INSIDE FRAME FOR CORRECT P/N]

5141433-626

£444,82 Unit Price incl. VAT

SCREW

7519954

£28,56 Unit Price incl. VAT

SCREW

7519936

£2,18 Unit Price incl. VAT

FRAME FRONT I JT BLK TX

5139652-626

£1 433,48 Unit Price incl. VAT

NUT

7547017

£6,57 Unit Price incl. VAT

FLAP DEBRIS

5451772

£29,92 Unit Price incl. VAT

RIVET

7621435

£1,63 Unit Price incl. VAT

BRKT. REGULATOR

1022287

£52,20 Unit Price incl. VAT

BRKT-REGULATOR VOLTAGE

5267510

£52,20 Unit Price incl. VAT

SCREW

7519779

£3,27 Unit Price incl. VAT

GASKET STRIP FOAM

5814155

£1,63 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

List of machines using this diagram

SCOUT SIXTY 1000 2022
