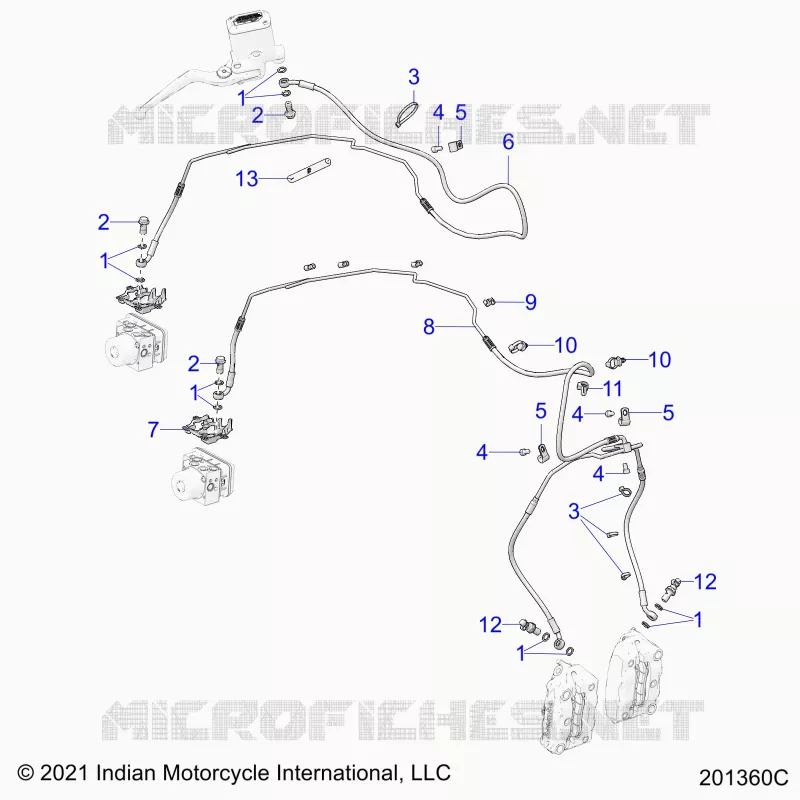

BRAKES, BRAKE LINE, FRONT, ABS
1
1
1
1
1
2
2
2
3
3
4
4
4
4
5
5
5
6
7
8
9
10
10
11
12
12
13
1
WASHER-CRUSH RIB M10
1913793
£5,46 Unit Price incl. VAT
2
BOLT-BANJO 10MM X 1.25-6G
1910958
£9,39 Unit Price incl. VAT
3
PANDUIT STRAP
7080138
£2,37 Unit Price incl. VAT
4
SCREW
7517337
£6,57 Unit Price incl. VAT
5
CLAMP-REAR BRAKE
7080983
£5,46 Unit Price incl. VAT
6
LINE-BRAKE FRT ABS TO MC CMF (FROM 2/18/21)
1913851
£172,69 Unit Price incl. VAT
6
LINE-BRAKE FRT MC TO MOD
1913248
£136,06 Unit Price incl. VAT
7
BRKT-ORIENTATION BANJO CMF [FROM 3/1/20]
5457633
£7,51 Unit Price incl. VAT
8
LINE-BRAKE FRT CAL TO MOD
1913246
£222,77 Unit Price incl. VAT
9
CLIP-BRAKE LINES ABS
5439155
£11,02 Unit Price incl. VAT
10
CLIP-ROUTING
7081496
£5,63 Unit Price incl. VAT
11
CLIP DART
7670102
£3,27 Unit Price incl. VAT
12
BOLT-BANJO M10X1.0 BLDR
1913088
£24,48 Unit Price incl. VAT
13
CLAMP-RUBBER 84MM
5416885
£5,46 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
