BODYWORK - REAR FENDER FOR CHIEFTAIN ELITE FROM 2020

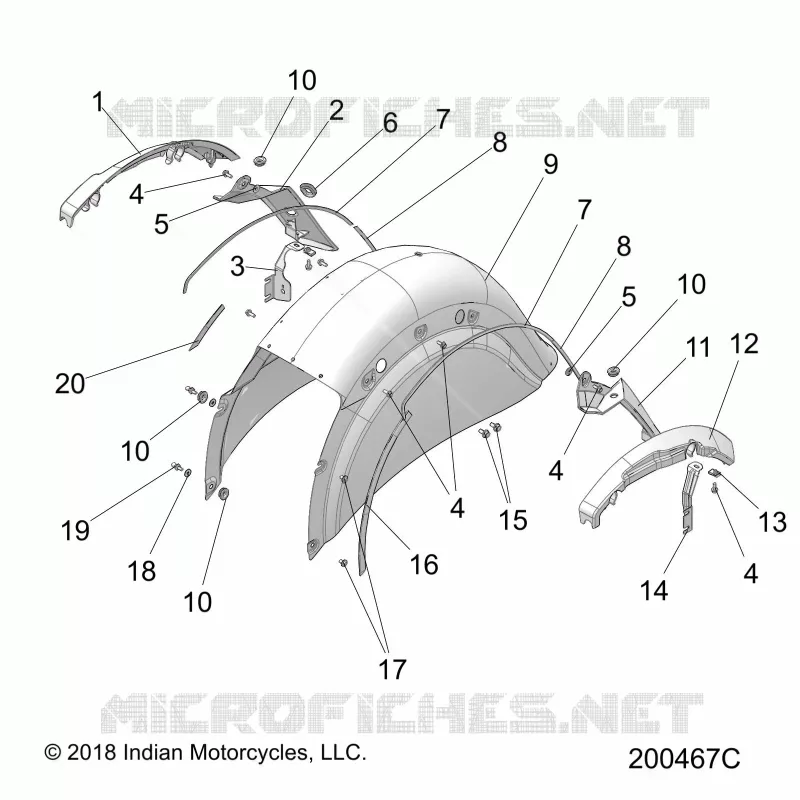

BODYWORK - REAR FENDER

1

CLOSEOUT-FENDER UPR RH TBKCRZ

5454614-794

£251,19 Unit Price incl. VAT

2

CLOSEOUT-FENDER LWR RH TBKCRZ

5454616-794

£251,19 Unit Price incl. VAT

3

BRKT-CLOSEOUT FENDER RH

1023750-329

£40,80 Unit Price incl. VAT

4

SCREW

7518591

£2,03 Unit Price incl. VAT

5

SLEEVE-TOPHAT BODYWORK M6

5142522

£6,57 Unit Price incl. VAT

6

GROMMET-ANTENNA CLOSEOUT 4MM

5416824

£5,46 Unit Price incl. VAT

7

SEAL-FOAM 1/8#THICKX1/4#W590MM

5814797-590

£2,18 Unit Price incl. VAT

8

SEAL-FOAM 1/8#THICKX1/4#W265MM

5814797-265

£1,63 Unit Price incl. VAT

9

ASM. FENDER RR STT TBLKVCRY/RED

1024557-1890

Not Available

10

GROMMET

5437772

£4,37 Unit Price incl. VAT

11

CLOSEOUT-FENDER LWR LH TBKCRZ

5454615-794

£251,19 Unit Price incl. VAT

12

CLOSEOUT-FENDER UPR LH TBKCRZ

5454613-794

£350,62 Unit Price incl. VAT

13

U CLIP SPEED NUT

7081305

£2,73 Unit Price incl. VAT

14

BRKT-CLOSEOUT FENDER LH

1023756-329

£40,80 Unit Price incl. VAT

15

SCREW

7519005

£5,46 Unit Price incl. VAT

16

TRIM REAR FENDER LH FRONT

5456171

£59,84 Unit Price incl. VAT

17

SCREW

7519932

£5,63 Unit Price incl. VAT

18

WASHER-6.4X16.0X0.8 ZPB

7557051

£10,60 Unit Price incl. VAT

19

STUD-BALL DAMPER

5135170

£8,45 Unit Price incl. VAT

20

TRIM REAR FENDER RH FRONT

5456172

£59,84 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
