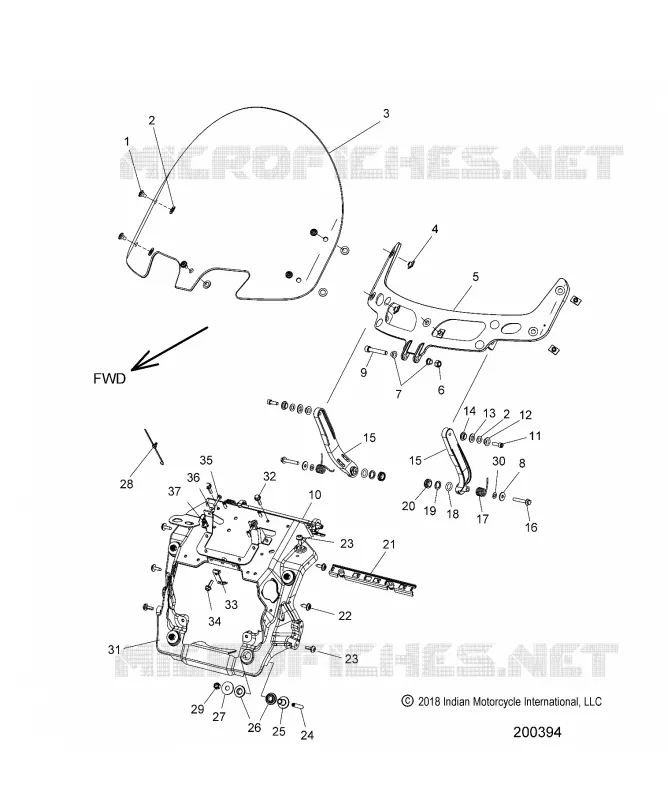

FAIRING ASM, WINDSHIELD MOUNT FOR CHIEFTAIN / CHIEFTAIN LIMITED FROM 2019

FAIRING ASM, WINDSHIELD MOUNT

1

BOLT SHOULDER M6x1.0x7MM 9MM NITRIDE [BLK]

7520510

£9,39 Unit Price incl. VAT

2

WSHR-FL 11X18X1.59MM

5813188

Not Available

3

K-WINDSHIELD SHORT TOUR TNTD

2881797-02

£183,16 Unit Price incl. VAT

4

T-NUT

7547300

£2,18 Unit Price incl. VAT

5

SUPPORT WINDSHIELD

5138467-626

£85,63 Unit Price incl. VAT

6

NUT-HXFL-M8X1.25 8 ZB3 NYL

7547454

£3,27 Unit Price incl. VAT

7

BRG-FLANGE 8X10X7MM

3514565

£7,51 Unit Price incl. VAT

8

WASHER

7556064

£5,63 Unit Price incl. VAT

9

SCREW

7518013

£7,51 Unit Price incl. VAT

10

ROD PIVOT WS

5138358

£47,87 Unit Price incl. VAT

11

SCREW

7517305

£5,63 Unit Price incl. VAT

12

BUSHING FLANGE

5140871

£9,79 Unit Price incl. VAT

13

WASHER THRUST

7556832

£8,45 Unit Price incl. VAT

14

FLANGE BEARING

3514853

£7,51 Unit Price incl. VAT

15

LINK WINDSHIELD JT BLK

5138909-626

£60,15 Unit Price incl. VAT

16

SCREW-M6X1.00X40-HX/FL-YD

7517610

£2,18 Unit Price incl. VAT

17

Spring Windshield LH

7043355

£9,64 Unit Price incl. VAT

17

Spring Windshield RH

7043356

£8,45 Unit Price incl. VAT

18

O-RING

5411356

£3,27 Unit Price incl. VAT

19

Washer Flat

7556113

£5,63 Unit Price incl. VAT

20

Bearing Spherical

3514566

£16,32 Unit Price incl. VAT

21

BRACKET POWER SUPPLY ECOAT

1024261-329

£59,66 Unit Price incl. VAT

22

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

£4,37 Unit Price incl. VAT

23

SCREW

7519774

£5,46 Unit Price incl. VAT

24

STUD-M8x45

5142297

£5,63 Unit Price incl. VAT

25

BSHG-FLG 8.5X12.7X18.5

5136907

£9,79 Unit Price incl. VAT

26

BUSHING RUBBER

5413596

£3,27 Unit Price incl. VAT

27

Washer Flat

7556260

£10,60 Unit Price incl. VAT

28

CLIP-ROUTING

7081496

£5,63 Unit Price incl. VAT

29

NUT

7547144

£4,37 Unit Price incl. VAT

30

WASHER

7556121

£1,63 Unit Price incl. VAT

31

ASM. FAIRING BRACKET E-COAT

1024169-329

£189,10 Unit Price incl. VAT

32

BOLT

7518533

£1,63 Unit Price incl. VAT

33

BRACKET FAIRING HARNESS ECOAT

5266316-329

£40,80 Unit Price incl. VAT

34

SCREW

7518141

£5,63 Unit Price incl. VAT

35

SCREW

7519309

£8,45 Unit Price incl. VAT

36

WASHER

7556477

£4,37 Unit Price incl. VAT

37

NUT CLIP U SPEED

7547386

£3,27 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
