REAR SUSPENSION SWING ARM/SHOCK FOR FTR 1200 CARBON FROM 2022

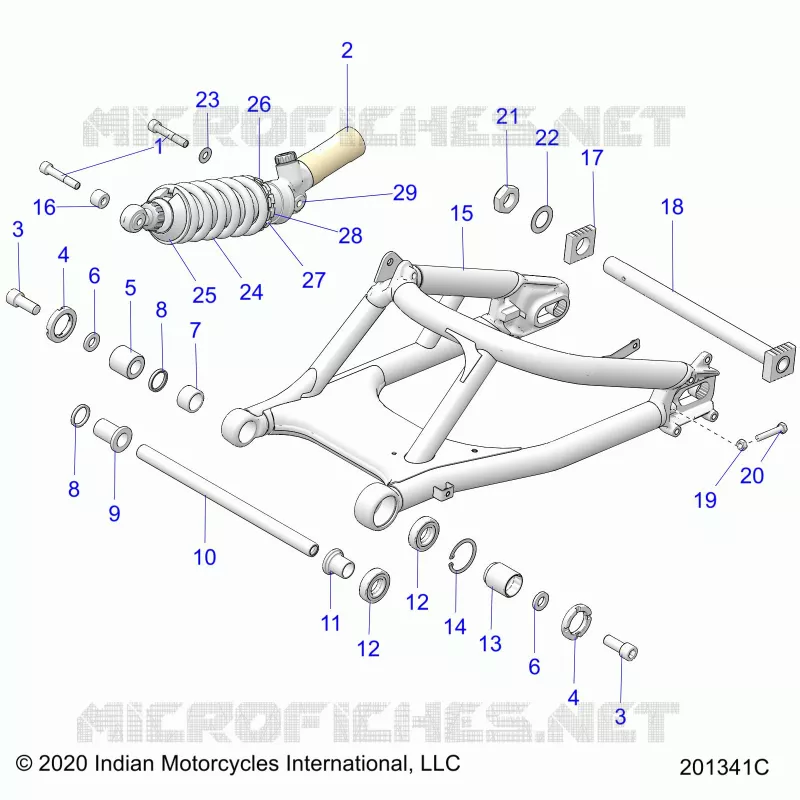

REAR SUSPENSION SWING ARM/SHOCK

1

SCR-SH-M10X1.5X55 10.9 SPCL

7521017

Not Available

2

ASM-SHOCK ELITE YELLOW

1824984-838

Not Available

3

SCR-SH-M14X2X35 10.9 ZPC D204

7521139

Not Available

4

RING-LOCK PIVOT

5142051

Not Available

5

ADJUSTER-PIVOT RH

5142050

Not Available

6

WASHER-14.5X26.4X4 ZPC

7557189

Not Available

7

BEARING NEEDLE ROLLER

3514413

£20,40 Unit Price incl. VAT

8

SEAL

3610096

£12,24 Unit Price incl. VAT

9

BUSH-PIVOT RH

5141833

Not Available

10

SHAFT-PIVOT

5143590

£98,44 Unit Price incl. VAT

11

BUSH-PIVOT LH

5141731

£24,48 Unit Price incl. VAT

12

BEARING BALL

3514549

£24,48 Unit Price incl. VAT

13

ADJUSTER-PIVOT LH

5142049

Not Available

14

RING-SNAP DIN472 47X1.75MM

7710677

£7,28 Unit Price incl. VAT

15

ASM-SWINGARM STEEL IND RED (INCL. 7 8 12 14)

1025419-639

£572,39 Unit Price incl. VAT

15

K-BEARINGS SWING-ARM [INCL. 7 8 9 12]

2208038

Not Available

16

BUSH-SHOCK FLOATING

5142556

Not Available

17

PLATE-ADJUSTER AXLE RH

5141735

Not Available

18

ASM-AXLE REAR

1544690

£121,31 Unit Price incl. VAT

19

NUT-HEX-M8X1.25 8 ZPB.

7547076

£3,27 Unit Price incl. VAT

20

SCR-HH M8X1.25X45 SPCL

7520973

Not Available

21

NUT-HEX M24X2 LOCK

7548017

£28,56 Unit Price incl. VAT

22

WASHER-25X40X1.2 ZPC

7557132

Not Available

23

WSHR-10.5X22.0X1.6 SPC

7556155

£5,63 Unit Price incl. VAT

24

K-SPRING-REAR 110 OHLINS YELLOW

2208824-838

Not Available

25

K-RETAINER-SPRING SHOCK ELITE

2208834

Not Available

26

K-COLLAR-SHOCK UPPER ELITE

2208837

Not Available

27

K-COLLAR-SHOCK LOWER ELITE

2208836

Not Available

28

K-WASHER-SPRING ELITE

2208835

Not Available

29

K-BALL-JOINT SHOCK ELITE

2208866

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
