SHOCK ABSORBER FOR SPRINGFIELD DARK HORSE FROM 2021

SHOCK ABSORBER

-

SHOCK-REAR LOW (INCL. ALL)

1544279

£666,96 Unit Price incl. VAT

1

BEARING EXTERNAL

1500982

£16,32 Unit Price incl. VAT

2

BEARING INT. 1.66 SHAFT

1501123

£24,48 Unit Price incl. VAT

3

BUMPER .498x.40TLG

1501102

£17,94 Unit Price incl. VAT

4

PELLET AIR VALVE

1500724

Not Available

5

SCREW SET PELLET RETAINER AIR VALVE

1500723

£28,56 Unit Price incl. VAT

6

CAP AIR VALVE

1500995

£13,16 Unit Price incl. VAT

7

BALL AIR VALVE 7/32

1500722

£4,37 Unit Price incl. VAT

8

BUSHING EYELET

1501010

£20,40 Unit Price incl. VAT

9

NUT LOCK 3/8-24

1500016

£13,05 Unit Price incl. VAT

10

HOSE SS BRAID 10#

1501217

£125,59 Unit Price incl. VAT

11

O-RING

1501129

£6,57 Unit Price incl. VAT

12

O-RING

1500537

£7,51 Unit Price incl. VAT

13

O-RING .103W-1.549ID

1500108

£8,97 Unit Price incl. VAT

14

WIPER SAMURAI

1501130

£29,92 Unit Price incl. VAT

15

WIPER A/N

1501131

£29,92 Unit Price incl. VAT

16

WEATHER SEAL

1501014

£13,78 Unit Price incl. VAT

17

Wire Retaining Ring

1500538

Not Available

18

SPROCKET [SEE DRIVETRAIN SPROCKETS GUARDS AND BELT PG.]

-------

Not Available

20

BODY 1.159 DIA BORE 6.7 TLG FLOAT

1500977

Not Available

27

RETAINER SPRING UPPER

1500991

£59,84 Unit Price incl. VAT

30

SCREW - BLACK RES.

1501303

£36,72 Unit Price incl. VAT

31

ASM. AIR VALVE

1500996

£59,84 Unit Price incl. VAT

32

ASM. PISTON FLOAT

1501154

Not Available

33

ASM. BEARING .498 SHAFT

1501181

Not Available

34

SLEEVE LOWER FLOAT

1501183

Not Available

35

GUIDE NEGATIVE SPRING

1501184

Not Available

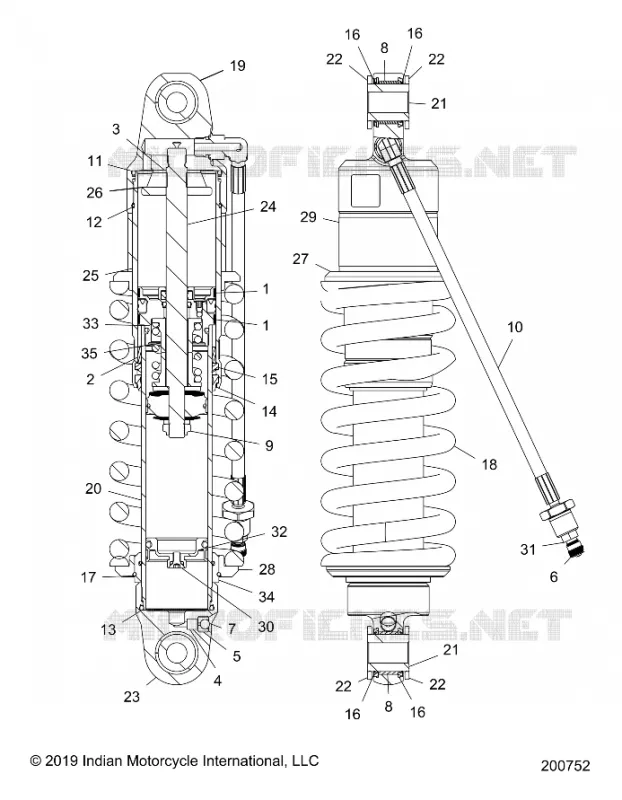

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
