CYLINDER AND CYL. HEAD MOUNTING
5
Parts Diagram
Parts Catalog
FUEL SYSTEM, EVAP SYSTEM, CALIFORNIA ONLY
by
SPEEDOMETER

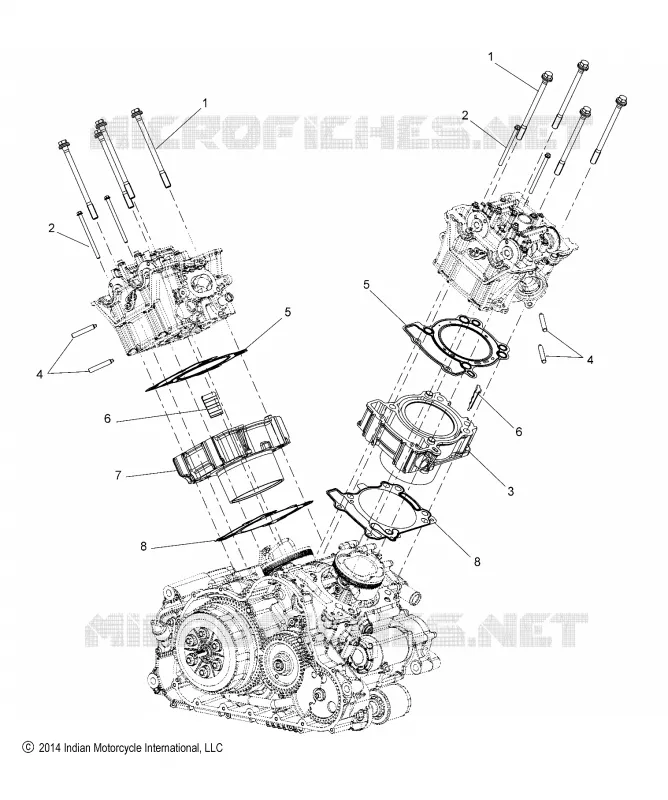

CYLINDER AND CYL. HEAD MOUNTING
1
1
2
2
3
4
4
5
5
6
6
7
8
8
1
BOLT
7520203
£16,32 Unit Price incl. VAT
2
SCREW
7520115
£8,45 Unit Price incl. VAT
3
ASM. CYLINDER FRONT 99MM BRNZ [INCL. DOWELS]
3022486-687
£366,32 Unit Price incl. VAT
4
STUD-M8x22
5137389
£10,60 Unit Price incl. VAT
5
GASKET CYLINDER HEAD FRONT
5813878
£52,20 Unit Price incl. VAT
5
GASKET CYLINDER HEAD REAR
5813960
£52,20 Unit Price incl. VAT
6
DIVERTER COOLANT
5451046
£14,35 Unit Price incl. VAT
7
ASM. CYLINDER REAR 99MM BRNZ [INCL. DOWELS]
3022487-687
£366,32 Unit Price incl. VAT
8
GASKET BASE REAR
5813952
£32,64 Unit Price incl. VAT
8
GASKET BASE FRONT
5813879
£32,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
