1
Engine displacement
1200
2
Year
2020
3
Trim
ftr-1200-carbon-le
4
Parts Catalog

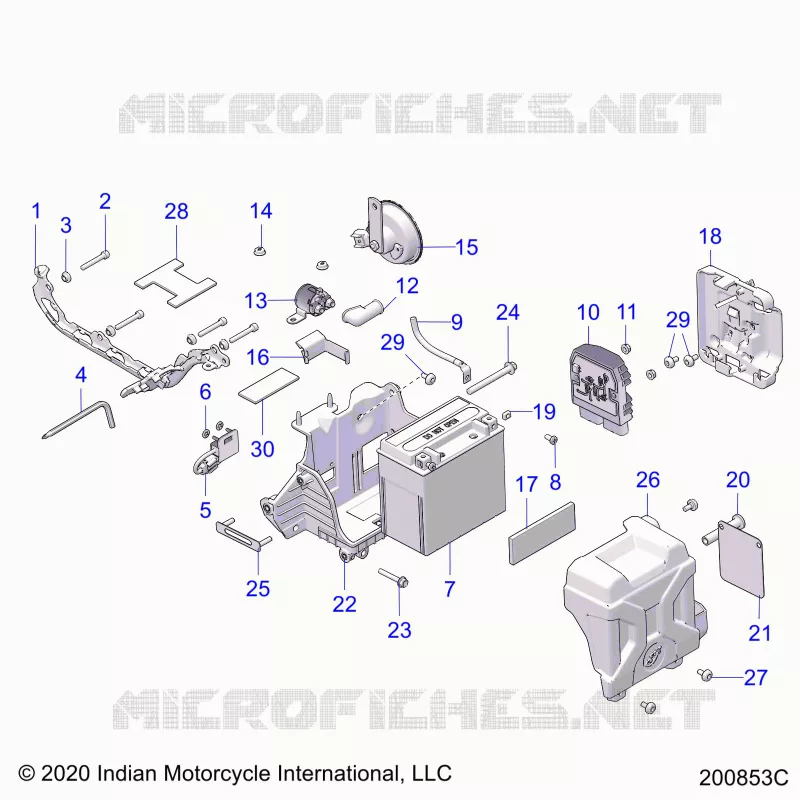

ELECTRICAL, BATTERY
5
Parts Diagram
Parts Catalog
ELECTRICAL, WIRE HARNESS
by
ELECTRICAL, INSTRUMENTATION
ELECTRICAL, BATTERY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
1
RETAINER-CABLE STATOR
5455525
Not Available
1
FORK-SHIFT 2ND/4TH
5142511
5144215
£177,92 Unit Price incl. VAT
2
FORK-SHIFT 1ST/3RD
5142512
5144214
£177,92 Unit Price incl. VAT
2
SCREW
7517261
£6,57 Unit Price incl. VAT
3
LIMITER-COMPRESSION RETAINER
5142466
Not Available
3
RAIL SHIFT FORK
5137945
£35,90 Unit Price incl. VAT
4
FORK-SHIFT 5TH/6TH
5142513
5144216
£209,32 Unit Price incl. VAT
4
WRENCH CRUISER HEX/PHILLIPS
5334438
£6,41 Unit Price incl. VAT
5
SENSOR-ANGLE 65 DEGREE
4017979
£98,44 Unit Price incl. VAT
5
ASM. SHIFT DRUM 6-SPEED-LGND
1334031
£198,86 Unit Price incl. VAT
6
WASHER PILOT
7556780
£24,48 Unit Price incl. VAT
6
RING-RETAINING 4MM STUD
7710751
£5,46 Unit Price incl. VAT
7
SPRING-TORSION LH
7044443
£9,64 Unit Price incl. VAT
7
BATTERY-12V240CCA 12AH YTX14H
4017581
£88,30 Unit Price incl. VAT
8
SCR-PHHX-M6X1X12 LPS BATTERY
7520056
£4,37 Unit Price incl. VAT
8
ASM. ROLLER FOLLOWER
1333426
£41,89 Unit Price incl. VAT
9
WASHER
7556054
£10,60 Unit Price incl. VAT
9
CABLE-GROUND TRK V
4017582
Not Available
10
SCREW
7518141
£5,63 Unit Price incl. VAT
10
REGULATOR 3PH
4012941
£282,59 Unit Price incl. VAT
11
NUT
7710495
£5,63 Unit Price incl. VAT
11
STAR SHIFTER
5137944
£109,37 Unit Price incl. VAT
12
WASHER STAR
7556749
£10,60 Unit Price incl. VAT
12
BOOT-BATTERY CABLE RED POS
5411570
£7,51 Unit Price incl. VAT
13
SCREW
7520597
£5,46 Unit Price incl. VAT
13
SOLENOID STARTER C1100 W/WASHER
4014471
£74,57 Unit Price incl. VAT
14
SPRING-TORSION RATCHET PLATE
7044421
£8,26 Unit Price incl. VAT
14
SPEED NUT-WASHER HEAD-1/4
7670054
£1,63 Unit Price incl. VAT
15
HORN-DISK LOWTONE TVX 50FK
4017857
£92,97 Unit Price incl. VAT
15
PIN-RATCHET PLATE STEPPED
5139947
£24,48 Unit Price incl. VAT
16
RETAINER-WIRES POWER
5455666
Not Available
16
RING-RTNG EXT E-CLIP 10MM
7710534
£28,56 Unit Price incl. VAT
17
PAD-BATTERY FRONT
5814831
£9,64 Unit Price incl. VAT
17
ASM. RATCHET SHIFTER [INCL. 14-20]
1334544
1337175
£109,37 Unit Price incl. VAT
18
MOUNT-ECM
5454542
£24,48 Unit Price incl. VAT
18
SPROCKET [SEE DRIVETRAIN SPROCKETS GUARDS AND BELT PG.]
-------
Not Available
19
NUT RECT
7547732
£5,46 Unit Price incl. VAT
19
SPRING-SHIFTER
7044414
£35,90 Unit Price incl. VAT
20
TOPHAT-CRANKCASE LH
5142198
Not Available
21
PLATE-BACKER VOLTAGE REG
5265992
Not Available
22
TRAY-BATTERY
5265020
5269894
£74,57 Unit Price incl. VAT
23
SCR-HXFL-M6X1.0X40 8.8 ZPB
7518579
£5,46 Unit Price incl. VAT
24
SCR-HXFL-M8X1.25X75 10.9 ZPC
7519948
£5,46 Unit Price incl. VAT
25
STUD-MOUNTING VOLTAGE REG
5265993
£24,48 Unit Price incl. VAT
26
COVER-BATTERY
5268451
£87,50 Unit Price incl. VAT
27
SCR-HXBH-M6X1.0X10 8.8 ZPB SPC
7521013
£5,46 Unit Price incl. VAT
28
PAD-FUEL TANK
5814857
Not Available
29
SCREW HXBUTSHLD
7519203
£10,60 Unit Price incl. VAT
30
PAD BATTERY
5814119
£6,41 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
