1
Engine displacement
1800
2
Year
2018
3
Trim
chieftain-chieftain-limited
4
Parts Catalog

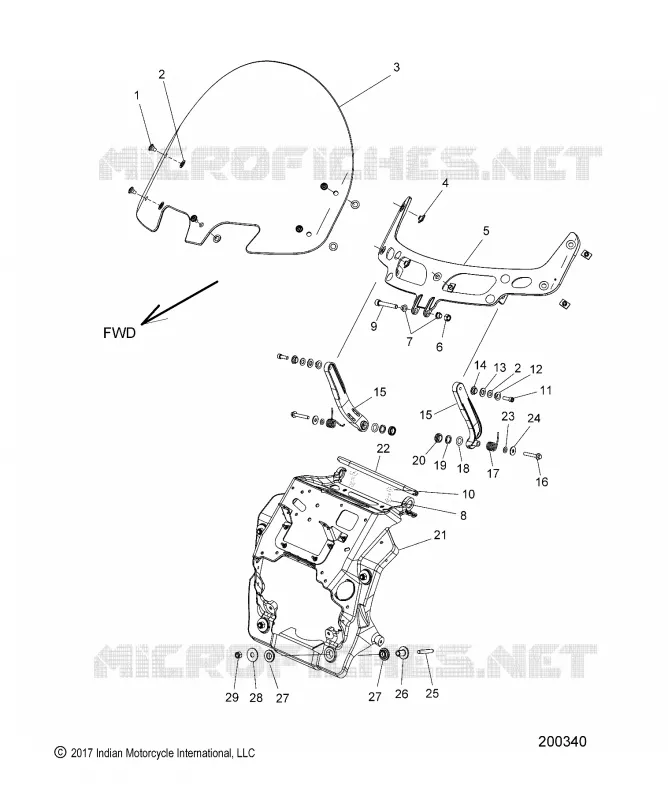

FAIRING ASM, WINDSHIELD MOUNT
5
Parts Diagram
Parts Catalog
ELECTRICAL, SWITCH CONTROLS, LH/RH
by
FAIRING ASM, WINDSHIELD MOUNT
1
2
2
3
4
5
6
7
8
9
24
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
1
BOLT SHOULDER M6x1.0x7MM 9MM NITRIDE [BLK]
7520510
£9,39 Unit Price incl. VAT
1
SCREW-SH-M6x1.0x7 302SS PSVTD
7518788
£8,45 Unit Price incl. VAT
2
WSHR-FL 11X18X1.59MM
5813188
Not Available
3
K-WINDSHIELD FLARE TINT
2880222-02
£345,39 Unit Price incl. VAT
3
K-WINDSHIELD SHORT TOUR TNTD
2881797-02
£183,16 Unit Price incl. VAT
4
T-NUT
7547300
£2,18 Unit Price incl. VAT
5
SUPPORT WINDSHIELD
5138467-626
£85,63 Unit Price incl. VAT
6
NUT-HXFL-M8X1.25 8 ZB3 NYL
7547454
7548028
£3,27 Unit Price incl. VAT
7
BRG-FLANGE 8X10X7MM
3514565
£7,51 Unit Price incl. VAT
8
SCREW
7518591
£2,03 Unit Price incl. VAT
9
SCREW
7518013
£7,51 Unit Price incl. VAT
10
WASHER
7556064
£5,63 Unit Price incl. VAT
11
SCREW
7517305
£5,63 Unit Price incl. VAT
12
BUSHING FLANGE
5140871
£9,79 Unit Price incl. VAT
13
WASHER THRUST
7556832
£8,45 Unit Price incl. VAT
14
FLANGE BEARING
3514853
£7,51 Unit Price incl. VAT
15
LINK WINDSHIELD JT BLK
5138909-626
5639267-626
£60,15 Unit Price incl. VAT
16
SCREW-M6X1.00X40-HX/FL-YD
7517610
£2,18 Unit Price incl. VAT
17
Spring Windshield LH
7043355
£9,64 Unit Price incl. VAT
17
Spring Windshield RH
7043356
£8,45 Unit Price incl. VAT
18
O-RING
5411356
£3,27 Unit Price incl. VAT
19
Washer Flat
7556113
£5,63 Unit Price incl. VAT
20
Bearing Spherical
3514566
£16,32 Unit Price incl. VAT
21
ASM. FAIRING BRACKET GPS
1022608-329
£293,05 Unit Price incl. VAT
22
ROD PIVOT WS
5138358
£47,87 Unit Price incl. VAT
23
WASHER
7556121
£1,63 Unit Price incl. VAT
25
PISTON
*******
Not Available
26
BSHG-FLG 8.5X12.7X18.5
5136907
£9,79 Unit Price incl. VAT
27
ISOLATOR FAIRING
5416052
£5,46 Unit Price incl. VAT
28
Washer Flat
7556260
£10,60 Unit Price incl. VAT
29
NUT
7547144
£4,37 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
