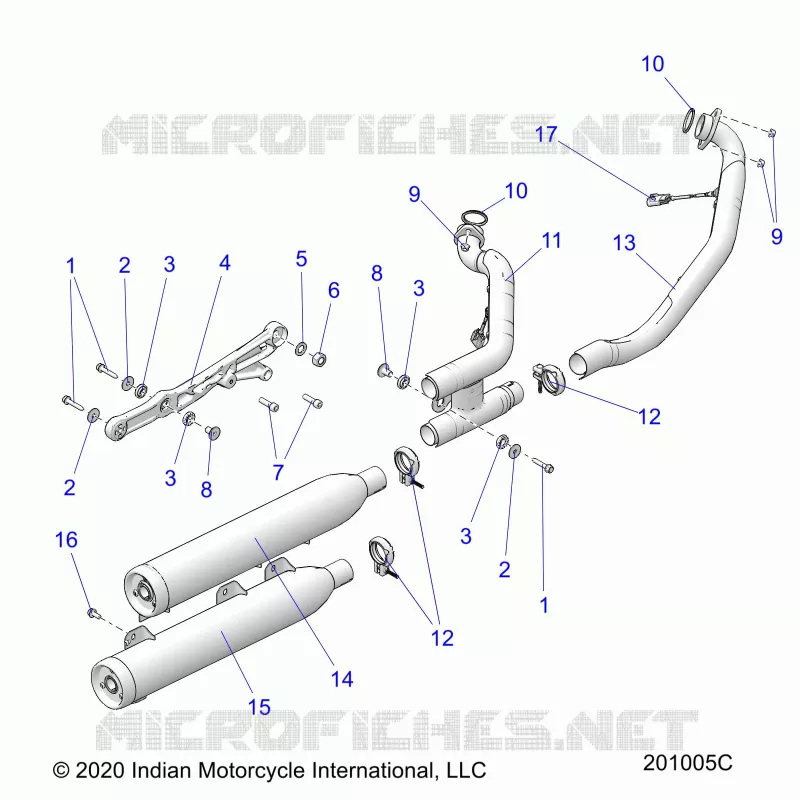

EXHAUST ASM., INTL FOR SCOUT BOBBER / BOBBER TWENTY FROM 2022

EXHAUST ASM., (TWENTY) NORTH AMERICA

EXHAUST ASM. (TWENTY) INTL

EXHAUST ASM., INTL

1

SCREW-M8x45 DOG PT

7520549

£5,46 Unit Price incl. VAT

2

WSHR-8.4X30. 0X2.0 ZPB

7556219

£7,51 Unit Price incl. VAT

3

ISOLATOR-EXHAUST SIL

5417417

£8,26 Unit Price incl. VAT

4

MOUNT-EXHAUST ISO FRG BLK

5639145-658

£183,16 Unit Price incl. VAT

5

WASHER

7556236

£8,45 Unit Price incl. VAT

6

NUT

7540001

£5,63 Unit Price incl. VAT

7

SCREW

7519959

£2,18 Unit Price incl. VAT

8

BUSHING-FLANGE

5633598

£4,37 Unit Price incl. VAT

9

NUT

7547014

£8,45 Unit Price incl. VAT

10

GASKET-EXHAUST HEADER

5271416

£53,86 Unit Price incl. VAT

11

WELD-SHIELD EXH RR LWR V CHR [CHROME]

1263504-156

£115,12 Unit Price incl. VAT

11

CLAMP-HOSE 56MM

7082440

£5,46 Unit Price incl. VAT

11

SHIELD-EXH RR LWR V BLK [BLACK]

1263504-266

£261,65 Unit Price incl. VAT

11

ASM-EXH HDPIPE RR V LV BLK [INCL. CLAMPS AND SHIELDS]

1263508-266

£537,55 Unit Price incl. VAT

11

WELD-SHIELD EXH RR UP V L BLK INTL [FROM 5/2/22]

1263503-922

£109,37 Unit Price incl. VAT

11

WELD-SHIELD EXH RR UP V L BLK [BLACK]

1263503-266

£261,65 Unit Price incl. VAT

11

SHIELD EXH RR UPR V LV CHR [CHROME]

1263503-156

£115,12 Unit Price incl. VAT

11

WELD-SHIELD EXH RR LWR V BLK INTL [FROM 5/2/22]

1263504-922

£109,37 Unit Price incl. VAT

11

CLAMP HOSE

7081623

£4,37 Unit Price incl. VAT

11

ASM-EXH HDPIPE RR V LV BLK [INTL][INCL. CLAMPS AND SHIELDS][FROM 5/2/22]

1263508-922

£537,55 Unit Price incl. VAT

12

ASM-CLAMP V BAND 45MM

1025593

£41,01 Unit Price incl. VAT

13

ASM-EXH HEADPIPE FR V LV BLK [INTL][INCL. CLAMPS AND SHIELD][TO 5/2/2022]

1263506-266

£429,12 Unit Price incl. VAT

13

CLAMP-HEAT SHIELD

7082192

£6,57 Unit Price incl. VAT

13

WELD-SHIELD EXH FRNT V LV BLK [BLACK]

1263501-266

£261,65 Unit Price incl. VAT

13

ASM-EXH HEADPIPE FR V LV BLK [INTL][INCL. CLAMPS AND SHIELD][FROM 5/2/2022]

1263506-922

£429,12 Unit Price incl. VAT

13

SHIELD-EXH FRNT V LV CHR [CHROME]

1263501-156

£214,55 Unit Price incl. VAT

13

WELD-SHIELD EXH FRNT V LV BLK [INTL][FROM 5/2/2022]

1263501-922

£198,86 Unit Price incl. VAT

14

ASM-MUFFLER UPR XNA BLK [CHINA ONLY]

1263513-266

£572,39 Unit Price incl. VAT

14

ASM-MUFFLER UPR E5 V ALL CHR [INTL ONLY][CHROME]

1263511-1562

£801,35 Unit Price incl. VAT

14

ASM-MUFFLER UPR E5 V BLK [INTL][FROM 5/2/2022]

1263511-922

£841,17 Unit Price incl. VAT

14

ASM-MUFFLER UPR E5 V BLK [INTL ONLY][BLACK]

1263511-266

£841,17 Unit Price incl. VAT

14

TIP-MUFFLER

5258421

£71,09 Unit Price incl. VAT

14

SCR-TXBH-M6X1.0X8 8.8

7519975

£4,37 Unit Price incl. VAT

14

ASM-MUFFLER UPR XNA V BLK [CHINA ONLY][FROM 7/1/2022]

1263513-922

£572,39 Unit Price incl. VAT

15

ASM-MUFFLER LWR XNA BLK [CHINA ONLY]

1263514-266

£572,39 Unit Price incl. VAT

15

ASM-MUFFLER LWR E5 V ALL CHR [INTL ONLY][CHROME]

1263512-1562

£801,35 Unit Price incl. VAT

15

ASM-MUFFLER LWR XNA V BLK [CHINA ONLY][FROM 7/1/2022]

1263514-922

£572,39 Unit Price incl. VAT

15

ASM-MUFFLER LWR E5 V BLK [INTL][FROM 5/2/2022]

1263512-922

£841,17 Unit Price incl. VAT

15

ASM-MUFFLER LWR E5 V BLK [INTL ONLY][BLACK]

1263512-266

£841,17 Unit Price incl. VAT

15

TIP-MUFFLER EU G BLK INTL

5263638-266

£76,56 Unit Price incl. VAT

16

SCREW

7520031

£5,46 Unit Price incl. VAT

17

SPROCKET [SEE DRIVETRAIN SPROCKETS GUARDS AND BELT PG.]

-------

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
