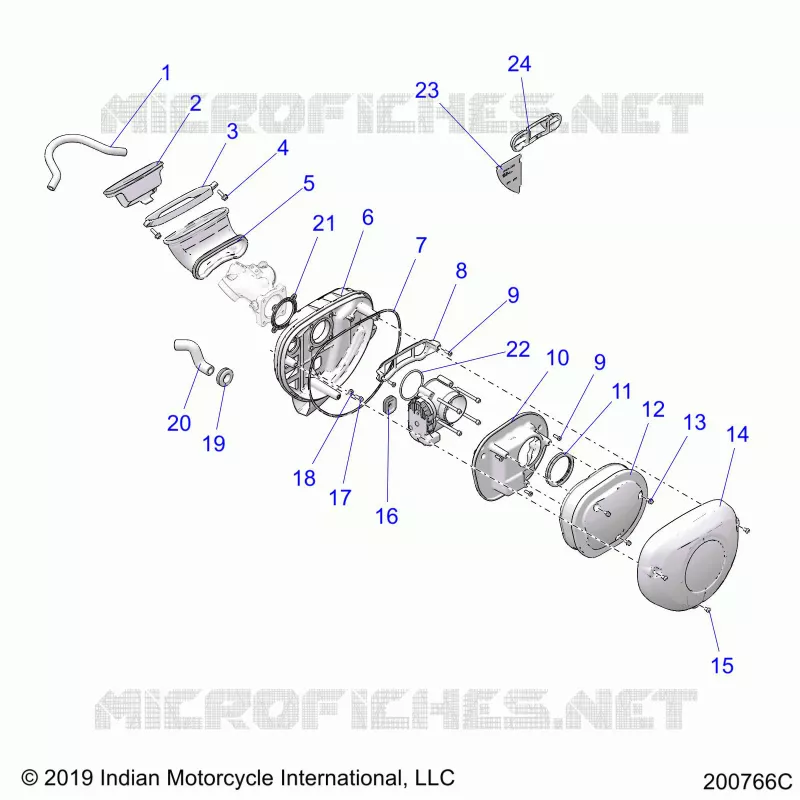

ENGINE, AIR INTAKE SYSTEM FOR SPRINGFIELD DARK HORSE FROM 2019

ENGINE, AIR INTAKE SYSTEM

1

HOSE BREATHER LINK

5414939

£76,56 Unit Price incl. VAT

2

INSERT AIRBOX CONNECTOR

5450308

£23,93 Unit Price incl. VAT

3

CONNECTOR AIR BOX CAST

5632801

£32,64 Unit Price incl. VAT

4

SCREW

7518141

£5,63 Unit Price incl. VAT

5

CONNECTOR AIR BOX

5414662

£59,66 Unit Price incl. VAT

6

BASE AIRBOX

5416598

£104,66 Unit Price incl. VAT

7

SEAL AIR BOX

5414783

£6,57 Unit Price incl. VAT

8

RETAINER AIR BOX CONNECTOR

1204747

£32,64 Unit Price incl. VAT

9

SCREW

7518238

£5,46 Unit Price incl. VAT

10

RETAINER PLATE AIR FILTER

1204919

£104,66 Unit Price incl. VAT

11

SEAL FILTER RETAINER PLATE

5414749

£16,32 Unit Price incl. VAT

12

AIR FILTER

5813976

£32,31 Unit Price incl. VAT

13

SCREW

7517795

£5,63 Unit Price incl. VAT

14

COVER AIR BOX CHROME

5257830-156

£387,25 Unit Price incl. VAT

15

SCREW

7517406

£5,63 Unit Price incl. VAT

16

GROMMET

5414802

£5,46 Unit Price incl. VAT

17

SCREW

7518548

£2,18 Unit Price incl. VAT

18

WASHER

7556485

£5,63 Unit Price incl. VAT

19

GROMMET

5414663

£5,63 Unit Price incl. VAT

20

BREATHER HOSE

5450006

£41,89 Unit Price incl. VAT

21

GASKET AIRBOX

5633638

£24,48 Unit Price incl. VAT

22

O-RING 231

5415963

£2,18 Unit Price incl. VAT

23

PLATE BLOCK OFF AIRBOX BASE EU (CHINA ONLY)

5452280

£20,40 Unit Price incl. VAT

24

PLATE BLOCK OFF INTAKE EU (CHINA ONLY)

5452281

£29,92 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
