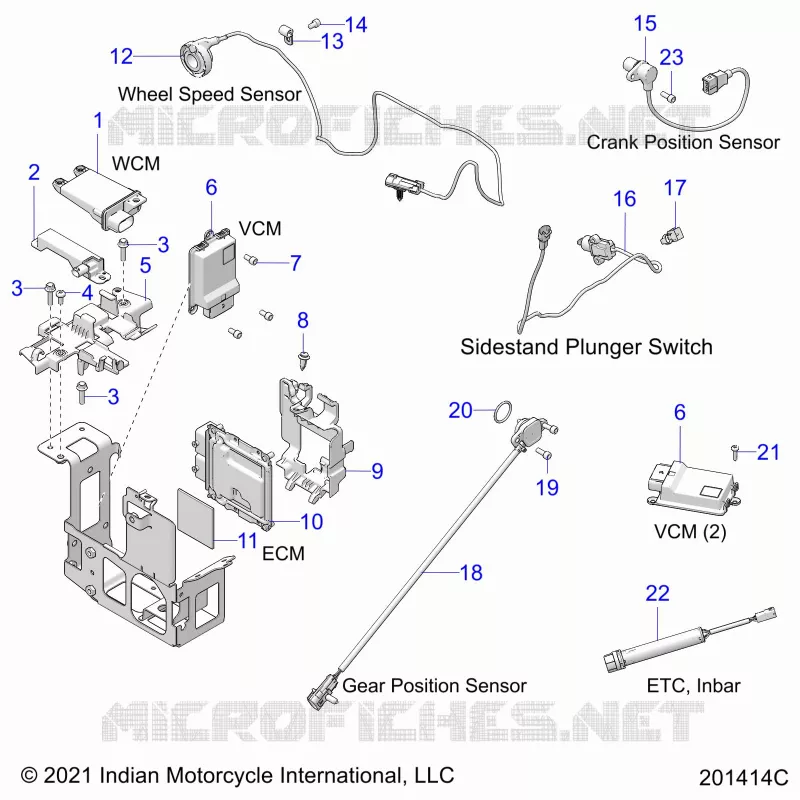

ELECTRICAL, COMPONENTS 2 FOR CHALLENGER LIMITED FROM 2022

ELECTRICAL, COMPONENTS 2

1

ASM-WCM GEN1 PROGRAMMED 433MHZ

2416265

£582,34 Unit Price incl. VAT

2

ANTENNA-LF 21KHZ

4018381

£59,84 Unit Price incl. VAT

3

SCREW

7518329

£8,45 Unit Price incl. VAT

4

SCREW-M6X1X14 PN/TX TRI-LOB

7518914

£4,37 Unit Price incl. VAT

5

BRKT-UNDERSEAT-WIRE MGMT

5454991

£32,64 Unit Price incl. VAT

6

VCM-GEN2 UNPROGRAMMED V3 (TO 4/5/21)

4080020

£277,35 Unit Price incl. VAT

7

SCREW

7517781

£4,37 Unit Price incl. VAT

8

RIVET TUFLOK

7661855

£1,63 Unit Price incl. VAT

9

BRKT-UNDERSEAT RETENTION

5455947

£32,64 Unit Price incl. VAT

10

ECM-HARD MG1 112P DEPOP [SVC]

4018203

£801,35 Unit Price incl. VAT

11

FOAM-ECM MOUNT

5522319

£4,80 Unit Price incl. VAT

12

SENSOR WHEEL SPEED 20X23.5 LONG

4018362

£146,52 Unit Price incl. VAT

13

CLAMP-REAR BRAKE

7080983

£5,46 Unit Price incl. VAT

14

SCREW

7517337

£6,57 Unit Price incl. VAT

15

SENSOR CRANK POSITION

2411589

£109,37 Unit Price incl. VAT

16

SWITCH SIDE STAND PLUNGER [INTL. ONLY]

4014289

£55,93 Unit Price incl. VAT

17

STRAP-CABLE TIEW/EDGECLIP3-6MM

7081824

£17,94 Unit Price incl. VAT

18

SENSOR-GEAR POSITION N-6 240

4019454

£109,89 Unit Price incl. VAT

19

SCR-SH-M6X1.0X16 8.8 ZPY D204

7519303

£5,46 Unit Price incl. VAT

20

O-RING

5412530

£2,18 Unit Price incl. VAT

21

SCREW-#10X3/4-HI/LO-PN-T25 TRX-M

7512026

£1,63 Unit Price incl. VAT

22

ASM. ETC INBAR

2413257

£303,52 Unit Price incl. VAT

23

SCREW

7517272

£8,45 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
