1
Engine displacement
1800
2
Year
2020
3
Trim
challenger-limited
4
Parts Catalog
FAIRING ASM 2
5
Parts Diagram
Parts Catalog
FUEL SYSTEM, EVAP SYSTEM (CALIF. AND INTL)
by
BODY, TAILLIGHT, LICENSE PLATE BRACKET

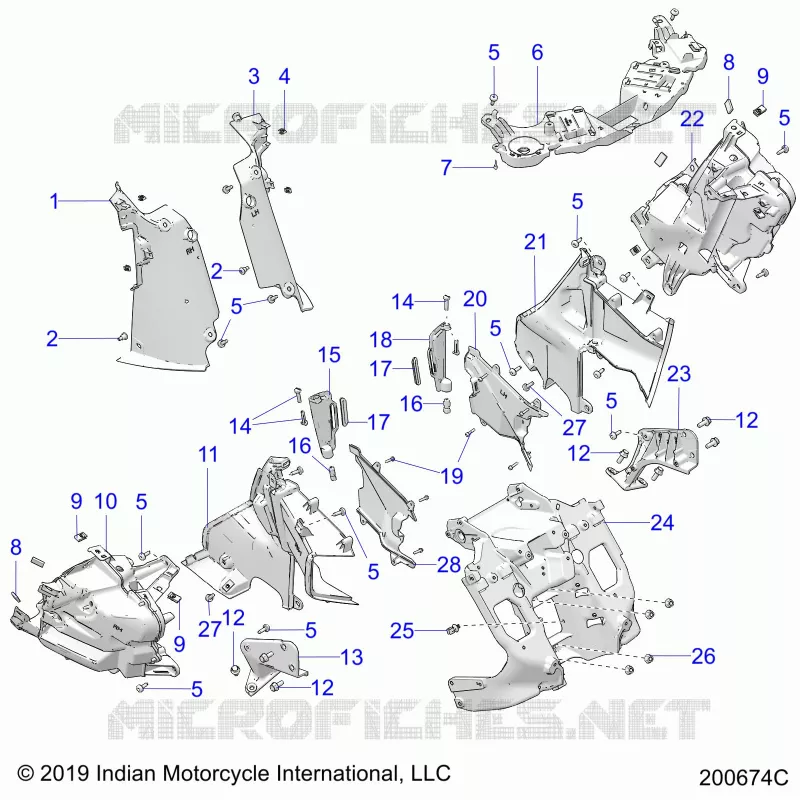

FAIRING ASM 2
1
2
2
3
4
5
5
5
5
5
5
5
5
5
5
6
7
8
8
9
9
9
10
11
12
12
12
12
13
14
14
15
16
16
17
17
18
19
20
21
22
23
24
25
26
27
27
28
1
CLOSEOUT-DASH RH
5455635
£41,89 Unit Price incl. VAT
2
SCREW-M6X1.0X16 SHLD ZPB
7521068
£4,37 Unit Price incl. VAT
3
CLOSEOUT-DASH LH
5455634
£41,89 Unit Price incl. VAT
4
CLIP-TRIM PLASTIC WHITE
5456313
£2,18 Unit Price incl. VAT
5
SCREW-TXBH-M6X1.0X15 8.8 ZB3 SH
7520011
£3,27 Unit Price incl. VAT
6
TRAY-FAIRING
5455936
£59,84 Unit Price incl. VAT
7
BUMPER-GROMMET 7MM DIA
5413033
£5,46 Unit Price incl. VAT
8
DUAL LOCK-15X20
5814735
£4,37 Unit Price incl. VAT
9
U CLIP SPEED NUT
7081305
£2,73 Unit Price incl. VAT
10
ASM. VOLUME SPKR RH [INCL. 8 9]
2637867
2638632
£382,02 Unit Price incl. VAT
10
ASM. ENCLOSURE DUCT RH [INCL. 5(QTY 4) 8-11 14-17 19]
2637869
2638632
£382,02 Unit Price incl. VAT
11
DUCT-OTR RH
5455639
£65,62 Unit Price incl. VAT
12
SCREW-HXFL-M8X1.25X20 8.8 ZPB
7521168
£4,37 Unit Price incl. VAT
13
BRKT-FAIRING LWR RH BLK
5634143-626
£63,39 Unit Price incl. VAT
14
PIN-DEFLECTOR
5439040
£24,48 Unit Price incl. VAT
15
DOOR-DAMPER RH
5455659
£29,92 Unit Price incl. VAT
16
HINGE-FRICTION SMALL
7081999
£40,80 Unit Price incl. VAT
17
GROMMET-GRIP DOOR
5416983
£6,41 Unit Price incl. VAT
18
DOOR-DAMPER LH
5455658
£29,92 Unit Price incl. VAT
19
SCREW-SWPH-#8X19 MAGNI BOSSCREW
7520960
£5,46 Unit Price incl. VAT
20
DUCT-INNER LH
5455636
£35,90 Unit Price incl. VAT
21
DUCT-OTR LH
5455638
£65,62 Unit Price incl. VAT
22
ASM. VOLUME SPKR LH [INCL. 8 9]
2637866
2638517
£382,02 Unit Price incl. VAT
22
ASM. ENCLOSURE DUCT LH [INCL. 5(QTY 4) 8 9 14 16-21]
2637868
2638517
£382,02 Unit Price incl. VAT
23
BRKT-FAIRING LWR LH BLK
5634142-626
£63,39 Unit Price incl. VAT
24
BRKT-FAIRING
5634443
5639343
£235,49 Unit Price incl. VAT
25
CLIP-ROUTING 8
5454313
£4,37 Unit Price incl. VAT
26
NUT-HXFL M8X1.25 ZOD
7547440
£4,37 Unit Price incl. VAT
27
SCREW
7519774
£5,46 Unit Price incl. VAT
28
DUCT-INNER RH
5455637
£35,90 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
