ELECTRICAL, IGNITION SYSTEM
5
Parts Diagram
Parts Catalog
ELECTRICAL, HEADLIGHT
by
ELECTRICAL, INSTRUMENT CLUSTER

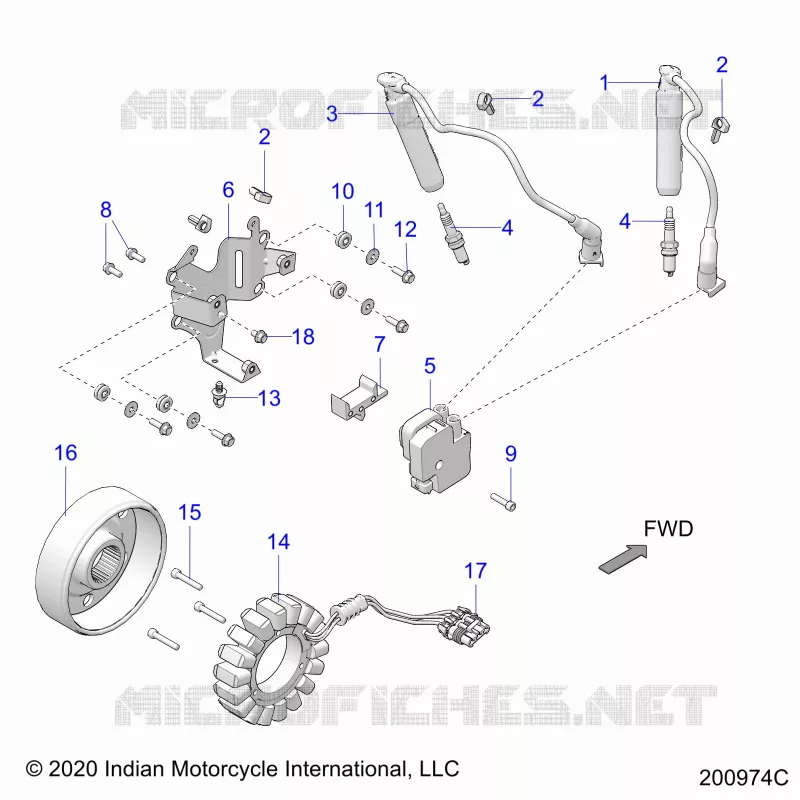

ELECTRICAL, IGNITION SYSTEM
1
2
2
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
LEAD SPARK PLUG-FRONT CYLINDER
4080060
£74,92 Unit Price incl. VAT
2
CLIP DART
7670102
£3,27 Unit Price incl. VAT
3
LEAD SPARK PLUG REAR CYL
4017227
£74,92 Unit Price incl. VAT
4
SPARK PLUG
3088051
£7,44 Unit Price incl. VAT
5
COIL EFI
4010425
2876049
£287,82 Unit Price incl. VAT
6
BRACKET MOUNT COIL
5264560
£74,92 Unit Price incl. VAT
7
SPACER IGNITION COIL 22MM
5510945
£59,84 Unit Price incl. VAT
8
SCREW
7518803
£5,46 Unit Price incl. VAT
9
SCREW
7517259
£6,57 Unit Price incl. VAT
10
ISOLATOR
5414603
£5,63 Unit Price incl. VAT
11
WASHER
7556064
£5,63 Unit Price incl. VAT
12
SCREW
7520122
£5,63 Unit Price incl. VAT
13
CLIP-ROUTING
7081496
£5,63 Unit Price incl. VAT
14
STATOR ALTERNATOR
4015333
£491,92 Unit Price incl. VAT
15
SCREW M6 SOC/CP
7517848
£6,57 Unit Price incl. VAT
16
ROTOR ALTERNATOR
4014084
£1 010,40 Unit Price incl. VAT
17
CONNECTOR 3 PIN
N61323000
Not Available
17
LOCK CONNECTOR
N61423000
£6,57 Unit Price incl. VAT
18
SCREW
7518393
£8,45 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
