DRIVE TRAIN, SHIFT FORKS AND DRUM FOR CHALLENGER ELITE FROM 2022

DRIVE TRAIN, INPUT/OUTPUT SHAFT ASM.

DRIVE TRAIN, SHIFT PEDAL AND SHIFT LINKAGE

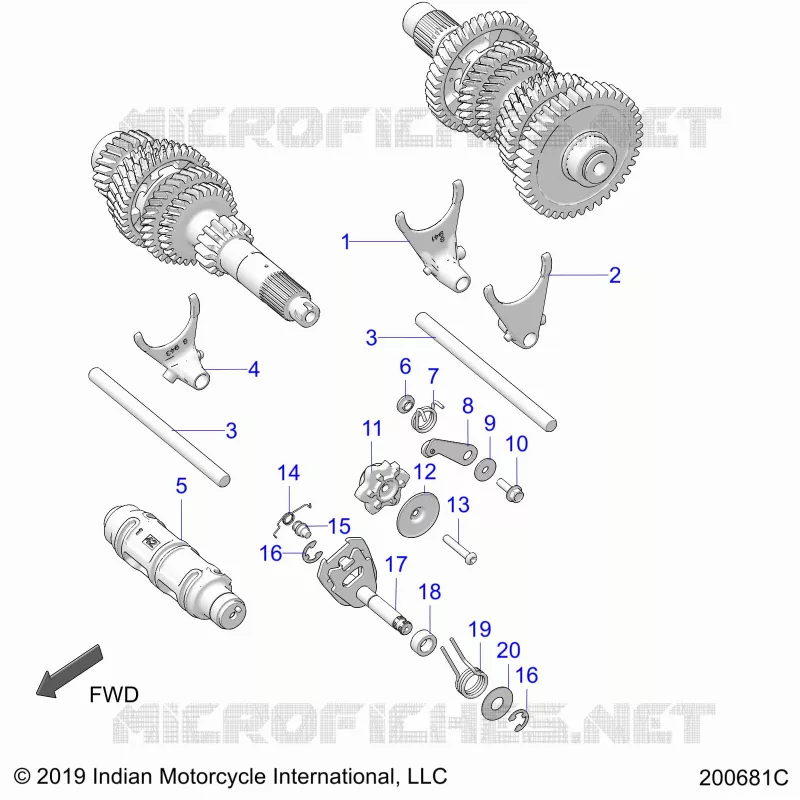

DRIVE TRAIN, SHIFT FORKS AND DRUM

1

FORK-SHIFT 2ND/4TH

5142511

£177,92 Unit Price incl. VAT

2

FORK-SHIFT 1ST/3RD

5142512

£177,92 Unit Price incl. VAT

3

RAIL SHIFT FORK

5137945

£35,90 Unit Price incl. VAT

4

FORK-SHIFT 5TH/6TH

5142513

£209,32 Unit Price incl. VAT

5

ASM. SHIFT DRUM 6-SPEED-LGND

1334031

£198,86 Unit Price incl. VAT

6

WASHER PILOT

7556780

£24,48 Unit Price incl. VAT

7

SPRING-TORSION LH

7044443

£9,64 Unit Price incl. VAT

8

ASM. ROLLER FOLLOWER

1333426

£41,89 Unit Price incl. VAT

9

WASHER

7556054

£10,60 Unit Price incl. VAT

10

SCREW

7518141

£5,63 Unit Price incl. VAT

11

STAR SHIFTER

5137944

£109,37 Unit Price incl. VAT

12

WASHER STAR

7556749

£10,60 Unit Price incl. VAT

13

SCREW

7520597

£5,46 Unit Price incl. VAT

14

SPRING-TORSION RATCHET PLATE

7044421

£8,26 Unit Price incl. VAT

15

PIN-RATCHET PLATE STEPPED

5139947

£24,48 Unit Price incl. VAT

16

RING-RTNG EXT E-CLIP 10MM

7710534

£28,56 Unit Price incl. VAT

17

ASM. RATCHET SHIFTER [INCL. 14-20]

1334544

£109,37 Unit Price incl. VAT

17

ASM-RATCHET SHIFTER [INCL. 14-20] [FROM 5/31/22]

1337175

£109,37 Unit Price incl. VAT

18

SPROCKET [SEE DRIVETRAIN SPROCKETS GUARDS AND BELT PG.]

-------

Not Available

19

SPRING-SHIFTER

7044414

£35,90 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
