ENGINE, CAM SHAFTS AND GEARS FOR CHIEFTAIN ELITE FROM 2020

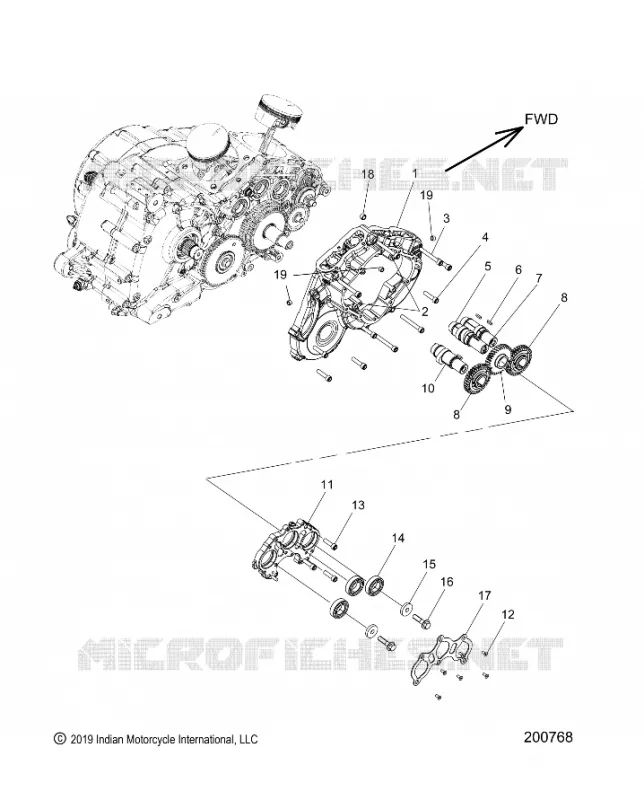

ENGINE, CAM SHAFTS AND GEARS

1

ASM. CAM COVER INNER (INCL. 2 18 19(QTY. 2))

1205447

£404,39 Unit Price incl. VAT

2

PIN DOWEL

5136879

£3,27 Unit Price incl. VAT

3

SCREW

7519813

£5,63 Unit Price incl. VAT

4

SCREW

7518347

£6,57 Unit Price incl. VAT

5

ASM-CAMSHAFT INTAKE 116

1206089

£277,35 Unit Price incl. VAT

6

KEY RND END

7710623

£5,82 Unit Price incl. VAT

7

ASM-CAMSHAFT EXH FRONT 116

1206090

£476,22 Unit Price incl. VAT

8

ASM. GEAR CAMSHAFT EXHAUST

1205465

£171,27 Unit Price incl. VAT

9

GEAR DRIVE CAMSHAFT

6230931

£147,48 Unit Price incl. VAT

10

ASM-CAMSHAFT EXH REAR 116

1206091

£476,22 Unit Price incl. VAT

11

ASM. SUPPORT OUTER CAM BEARINGS (INCL. DOWEL)

1205448

£82,06 Unit Price incl. VAT

12

SCREW

7517255

£8,45 Unit Price incl. VAT

13

SCREW

7517361

£24,48 Unit Price incl. VAT

14

BEARING BALL

3514751

£20,40 Unit Price incl. VAT

15

WASHER CAM RETAINING

7556871

£8,45 Unit Price incl. VAT

16

SCREW

7519763

£6,57 Unit Price incl. VAT

17

RETAINER BEARING OUTER CAMS

5138629

£48,96 Unit Price incl. VAT

18

BEARING NDL

3512106

£20,40 Unit Price incl. VAT

19

PLUG-1/8 NPTF HX/SOC W/SEALANT

7052702

£15,55 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
