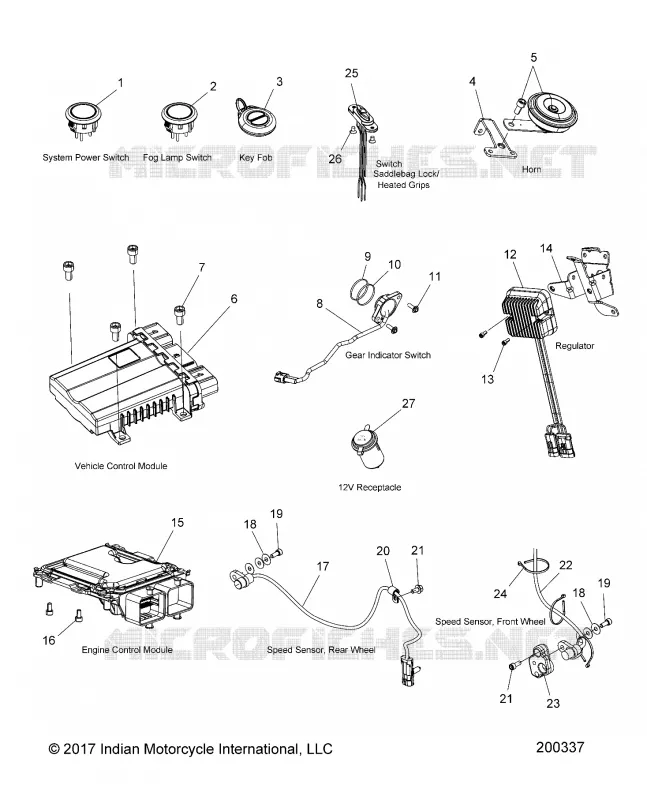

ELECTRICAL, COMPONENTS 1
1
2
3
4
5
6
7
8
9
10
11
12
19
14
15
16
17
18
18
19
19
20
21
21
22
23
24
25
26
27
1
SWITCH SYSTEM POWER
4016373
£55,37 Unit Price incl. VAT
2
SWITCH FOG LIGHTS
4016252
£44,74 Unit Price incl. VAT
3
DECAL INDIAN LOGO FOB
7180111
£13,78 Unit Price incl. VAT
3
REMOTE CONTROL FOB 2 BUTTON
4014121
£204,09 Unit Price incl. VAT
3
BATTERY KEY FOB
4014675
£12,40 Unit Price incl. VAT
3
K-FOB HOUSING 2 BTN (PLASTIC HOUSING ONLY)
2207317
£35,90 Unit Price incl. VAT
4
BRACKET HORN MOUNT
5264799
£24,48 Unit Price incl. VAT
5
HORN-DISK LOWTONE TVX 50FK
4017857
£92,97 Unit Price incl. VAT
5
SCR-SH-M8X1.25X16 8.8 ZPB P30 [BOBBER TWENTY ONLY]
7517569
£5,63 Unit Price incl. VAT
6
ASM-VCM PROGRAMMED IND 6X [SVC][DEALER INSTALL REQUIRED]
2414503
£726,69 Unit Price incl. VAT
7
SCREW
7517781
£4,37 Unit Price incl. VAT
8
SWITCH GEAR N-6 W/GROUND
4014718
£78,49 Unit Price incl. VAT
9
O-RING
5412530
£2,18 Unit Price incl. VAT
10
RING PARBAK-121
5450958
£8,26 Unit Price incl. VAT
11
SCREW
7519986
£5,63 Unit Price incl. VAT
12
REGULATOR VOLTAGE
4014300
£382,02 Unit Price incl. VAT
13
SCREW
7517272
£8,45 Unit Price incl. VAT
14
BRKT. VOLTAGE REGULATOR
5257637
£82,06 Unit Price incl. VAT
15
ECM NO START ME17 [SVC]
4014125
£671,94 Unit Price incl. VAT
16
SCREW
7519851
£4,37 Unit Price incl. VAT
17
SENSOR WHEEL SPEED REAR [INTL. ONLY]
4014216
£235,49 Unit Price incl. VAT
18
SHIM SENSOR ABS [INTL. ONLY]
5255106
£8,01 Unit Price incl. VAT
20
CLAMP-REAR BRAKE
7080983
£5,46 Unit Price incl. VAT
21
SCREW HXFLG
7517704
£8,45 Unit Price incl. VAT
22
SENSOR WHEEL SPEED [INTL. ONLY]
4013251
£235,49 Unit Price incl. VAT
23
MOUNT SPEED SENSOR ABS
5632575
£32,64 Unit Price incl. VAT
24
PANDUIT STRAP
7080138
£2,37 Unit Price incl. VAT
25
SWITCH-SADDLEBAG LOCK V2
4017110
£82,06 Unit Price incl. VAT
26
SCREW
7519876
£5,46 Unit Price incl. VAT
27
RECEPTACLE-POD MNT 12 VOLT
4012393
£41,89 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
