DRIVE TRAIN, INPUT/OUTPUT SHAFT ASM.
5

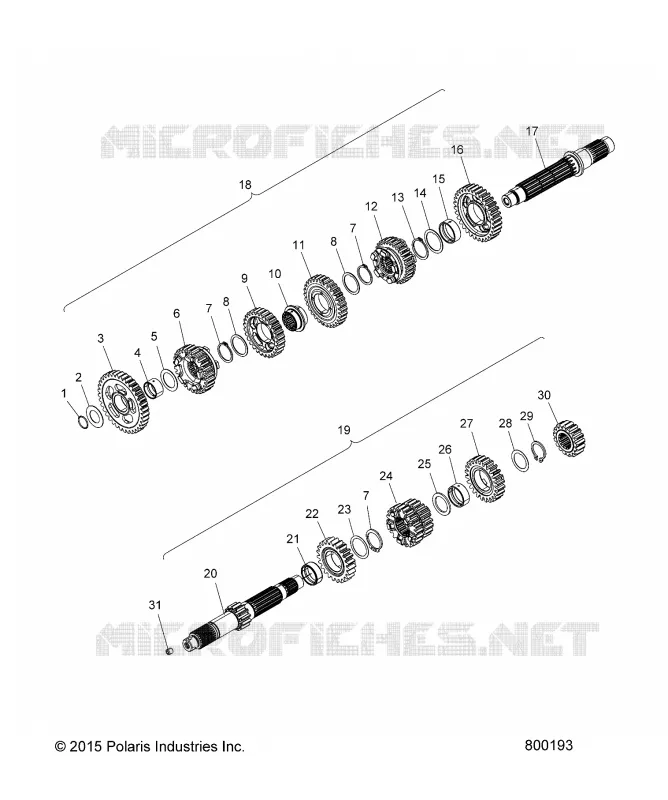

Parts Diagram
Parts Catalog
REAR BRAKE ASM., W/ABS
by
DRIVE TRAIN, SHIFT FORKS, RATCHET AND DRUM
DRIVE TRAIN, INPUT/OUTPUT SHAFT ASM.
1
2
3
4
5
5
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
O-RING
5415457
£8,45 Unit Price incl. VAT
2
WASHER FLAT
7556909
£5,63 Unit Price incl. VAT
3
GEAR OUTPUT 1ST
6230938
£180,78 Unit Price incl. VAT
4
BUSHING PLAIN
6230939
£20,40 Unit Price incl. VAT
5
WASHER FLAT
7556906
£5,63 Unit Price incl. VAT
6
GEAR 5TH OUTPUT
6230847
£171,27 Unit Price incl. VAT
7
RING RETAINING EXT. 28MM
7710801
£10,60 Unit Price incl. VAT
8
WASHER FLAT
7556908
£5,63 Unit Price incl. VAT
9
GEAR 4TH OUTPUT
6230844
£171,27 Unit Price incl. VAT
10
BUSHING SPLINED
6230846
£55,93 Unit Price incl. VAT
11
GEAR-3RD OUTPUT
6231053
Not Available
12
GEAR-6TH OUTPUT
6231054
£172,69 Unit Price incl. VAT
13
RING RETAINING EXT. 30MM
7710803
£6,57 Unit Price incl. VAT
14
WASHER FLAT TTH
7556907
£5,63 Unit Price incl. VAT
15
BUSHING PLAIN
6230845
£28,56 Unit Price incl. VAT
16
GEAR 2ND OUTPUT
6230842
£142,72 Unit Price incl. VAT
17
SHAFT OUTPUT
6230848
£277,35 Unit Price incl. VAT
18
ASM. OUTPUT SHAFT [INCL. 1-17]
1333970
2209969
£1 284,16 Unit Price incl. VAT
19
ASM. INPUT SHAFT [INCL. 7 20-31]
1333969
2209969
£1 284,16 Unit Price incl. VAT
20
SHAFT INPUT AND 1ST GEAR
6230839
£198,86 Unit Price incl. VAT
21
BUSHING PLAIN
6230940
£20,40 Unit Price incl. VAT
22
GEAR 5TH INPUT
6230834
£180,78 Unit Price incl. VAT
23
WASHER FLAT
7556903
£8,45 Unit Price incl. VAT
24
GEAR - 3RD/4TH INPUT
6231051
Not Available
25
WASHER FLAT
7556904
£6,57 Unit Price incl. VAT
26
BUSHING PLAIN
6230837
£24,48 Unit Price incl. VAT
27
GEAR-6TH INPUT
6231052
Not Available
28
WASHER
7556905
£5,63 Unit Price incl. VAT
29
RING RETAINING
7710802
£6,57 Unit Price incl. VAT
30
GEAR 2ND INPUT
6230835
£156,99 Unit Price incl. VAT
31
PLUG-OIL M8
2521423
£43,52 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
