1
Engine displacement
1800
2
Year
2022
3
Trim
chief-111
4
Parts Catalog
ENGINE, PISTON AND CRANKSHAFT
5
Parts Diagram
Parts Catalog
by
CRANKCASE

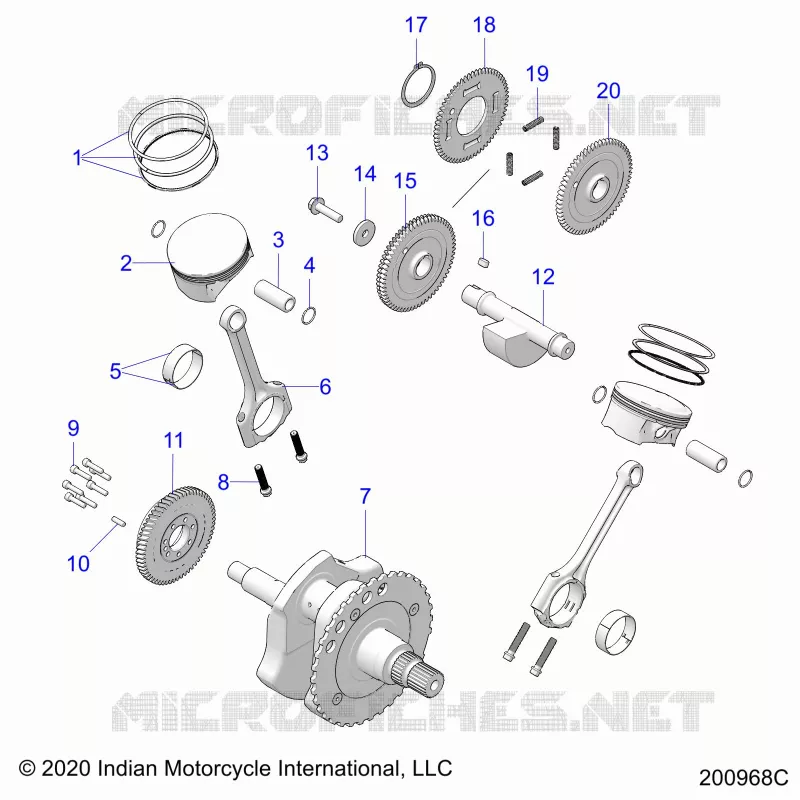

ENGINE, PISTON AND CRANKSHAFT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
20
19
20
1
KIT RINGS PISTON [1 SET OF 3]
2203006
£76,56 Unit Price incl. VAT
2
ASM. PISTON (INCL. 1-4)
3023065
£219,79 Unit Price incl. VAT
3
PIN PISTON 22MM
3023067
£53,86 Unit Price incl. VAT
4
RING RETAINING
7710479
£8,45 Unit Price incl. VAT
5
BEARING CONNECTING ROD 52MM ORG.
3515097-002
£24,48 Unit Price incl. VAT
5
BEARING CONNECTING ROD 52MM BLK.
3515097-001
£24,48 Unit Price incl. VAT
5
BEARING CONNECTING ROD 52MM BLU
3515097-003
£24,48 Unit Price incl. VAT
6
ASM. CONNECTING ROD 184MM (INCL. BOLTS)
3023483
£303,52 Unit Price incl. VAT
7
ASM-CRANKSHAFT 56.5MM (INCL. TIMING RING)
3023696
£1 319,00 Unit Price incl. VAT
8
BOLT CONNECTING ROD
7520356
£24,48 Unit Price incl. VAT
9
SCREW
7518995
£6,57 Unit Price incl. VAT
10
PIN SOLID
3234330
£8,45 Unit Price incl. VAT
11
GEAR BALANCE DRIVE
6230804
6237721
£233,12 Unit Price incl. VAT
12
SHAFT-BALANCE MACH
5141967
5144258
£94,46 Unit Price incl. VAT
13
SCREW
7519763
£6,57 Unit Price incl. VAT
14
WASHER CAM RETAINING
7556871
£8,45 Unit Price incl. VAT
15
ASM. GEAR BALANCER (INCL. 17-20)
1333423
1336998
£247,39 Unit Price incl. VAT
16
KEY
7710708
£7,51 Unit Price incl. VAT
17
RING RETAINING
7710791
7718426
£3,27 Unit Price incl. VAT
18
GEAR BALANCE SHAFT
6230805
1336998
£247,39 Unit Price incl. VAT
19
SPROCKET [SEE DRIVETRAIN SPROCKETS GUARDS AND BELT PG.]
-------
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
