1
Engine displacement
1800
2
Year
2018
3
Trim
chieftain-chieftain-limited
4
Parts Catalog
FUEL SYSTEM, FUEL TANK ASM.
5
Parts Diagram
Parts Catalog
ELECTRICAL, WIRE HARNESS
by
MIRRORSS

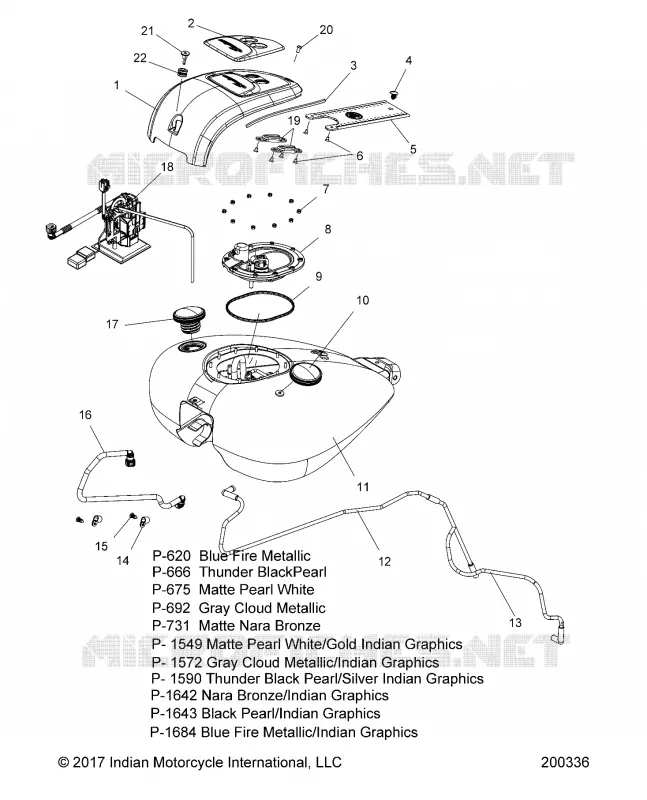

FUEL SYSTEM, FUEL TANK ASM.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
CONSOLE-OUTER NO GAUGE AL CLD GR
5633653-692
£577,37 Unit Price incl. VAT
1
CONSOLE-OUTER NO GAUGE AL PSMK
5633653-675
£497,15 Unit Price incl. VAT
1
CONSOLE-OUTER NO GAUGE AL BLUFR MET
5633653-620
£577,37 Unit Price incl. VAT
1
CONSOLE-OUTER NO GAUGE AL MTNARA
5633653-731
£577,37 Unit Price incl. VAT
1
CONSOLE-OUTER NO GAUGE AL TBLK PRL
5633653-666
£497,15 Unit Price incl. VAT
2
CONSOLE-INNER BLK CHROME
5262804-03
£120,36 Unit Price incl. VAT
3
TRIM EDGE CONSOLE 450MM
8360133
£47,87 Unit Price incl. VAT
4
CLIP DART
7670088
£2,18 Unit Price incl. VAT
5
STRAP FUEL TANK LEATHER BLACK
2685660-01
Not Available
6
SCREW
7519876
£5,46 Unit Price incl. VAT
7
NUT-M5X.8 HX NYL-Y
7546601
£1,63 Unit Price incl. VAT
8
ASM. FUEL ACCESS
2521374
£298,29 Unit Price incl. VAT
9
SEAL FUEL
5414514
£41,01 Unit Price incl. VAT
10
CAP FUEL DUMMY CHROME
5138538-156
2522215-156
£103,90 Unit Price incl. VAT
11
ASM-TANK FUEL
1021997-1549
1025508-1549
£2 911,76 Unit Price incl. VAT
11
ASM-TANK FUEL
1021997-1643
Not Available
11
ASM-TANK FUEL
1021997-1590
1025508-1590
£2 792,30 Unit Price incl. VAT
11
ASM-TANK FUEL
1021997-1684
Not Available
11
ASM-TANK FUEL
1021997-1572
Not Available
11
ASM-TANK FUEL
1021997-1642
Not Available
12
LINE VENT TO GROUND UPPER
5439857
£92,97 Unit Price incl. VAT
13
LINE VENT TO GROUND LOWER
5439858
£172,69 Unit Price incl. VAT
14
CLAMP-CABLE 9/16 I.D.
7080499
£6,57 Unit Price incl. VAT
15
CLIP XMAS TREE
7661953
£1,63 Unit Price incl. VAT
16
LINE FUEL
5414515
£115,12 Unit Price incl. VAT
17
CAP FUEL CHROME
5138508-156
2522214-156
£125,59 Unit Price incl. VAT
18
ASM. FUEL PUMP SENDER SVCBL FLTR
2521787
2522160
£491,92 Unit Price incl. VAT
18
K-SVC FUEL FILTER
2207067
£54,41 Unit Price incl. VAT
19
PLUG-CONSOLE TALL
5453426
£13,78 Unit Price incl. VAT
19
PISTON
*******
Not Available
20
SCREW
7519000
£3,27 Unit Price incl. VAT
21
SCREW-SHLDR-M6X11.75X14
7519350
£13,87 Unit Price incl. VAT
22
GROMMET
5412201
£7,51 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
