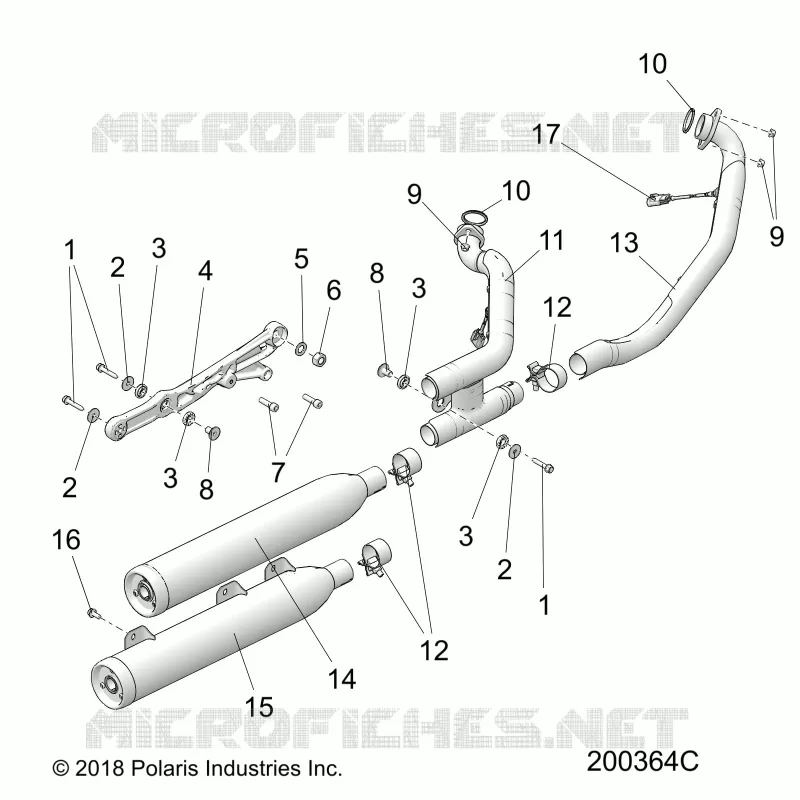

EXHAUST ASM.
1
1
2
2
2
3
3
3
3
4
5
6
7
8
8
9
9
10
10
11
12
12
13
14
15
16
17
1
SCREW-M8x45 DOG PT
7520549
£5,46 Unit Price incl. VAT
2
WSHR-8.4X30. 0X2.0 ZPB
7556219
£7,51 Unit Price incl. VAT
3
ISOLATOR-EXHAUST SIL
5417417
£8,26 Unit Price incl. VAT
4
MOUNT EXHAUST
5634007-658
£103,47 Unit Price incl. VAT
5
WASHER
7556236
£8,45 Unit Price incl. VAT
6
NUT
7540001
£5,63 Unit Price incl. VAT
7
SCREW
7519959
£2,18 Unit Price incl. VAT
8
BUSHING-FLANGE
5633598
£4,37 Unit Price incl. VAT
9
NUT
7547014
£8,45 Unit Price incl. VAT
10
GASKET-EXHAUST HEADER
5271416
£53,86 Unit Price incl. VAT
11
WELD-SHIELD EXH RR LWR VR [FROM 4/22/22]
1263322-922
£109,37 Unit Price incl. VAT
11
WELD-EXH HEATSHLD RR LWR G BLK [TO 4/22/22]
1263189-922
£109,89 Unit Price incl. VAT
11
CLAMP-HEAT SHIELD
7082192
£6,57 Unit Price incl. VAT
11
WELD-SHIELD EXH RR UPR LVG BLK [TO 4/22/22]
1263238-922
£109,89 Unit Price incl. VAT
11
ASM-EXH HDPIPE RR VG LV BLK [INCL. CLAMPS AND SHIELDS][FROM 5/2/22]
1263481-922
£731,67 Unit Price incl. VAT
11
WELD-SHIELD EXH RR UP VR LV [FROM 4/22/22]
1263321-922
£120,36 Unit Price incl. VAT
12
CLAMP EXHAUST SS
7081179
£41,01 Unit Price incl. VAT
13
ASM-EXH HEADPIPE FRONT VG LV BLK [INCL. CLAMPS AND SHIELD]
1263479-266
1263479-922
£429,12 Unit Price incl. VAT
13
ASM-EXH HEADPIPE FR VG LV BLK [INCL. CLAMPS AND SHIELD][FROM 5/2/2022]
1263479-922
£429,12 Unit Price incl. VAT
13
WELD-SHIELD EXH FRNT LV BLK [TO 4/22/22]
1263055-922
£188,39 Unit Price incl. VAT
13
WELD-SHIELD EXH FRNT VR LV [FROM 4/22/22]
1263319-922
£146,52 Unit Price incl. VAT
14
ASM-MUFFLER UPR BLK [FROM 5/2/2022]
1262908-922
£481,45 Unit Price incl. VAT
14
TIP-MUFFLER G BLK
5258421-266
5258421-922
£71,09 Unit Price incl. VAT
14
ASM. MUFFLER UPPER BLK
1262908-266
1262908-922
£481,45 Unit Price incl. VAT
14
SCR-TXBH-M6X1.0X8 8.8
7519975
£4,37 Unit Price incl. VAT
15
ASM-MUFFLER LWR BLK [FROM 5/2/2022]
1262907-922
£481,45 Unit Price incl. VAT
15
ASM. MUFFLER LOWER BLK
1262907-266
1262907-922
£481,45 Unit Price incl. VAT
16
SCREW
7520031
£5,46 Unit Price incl. VAT
17
SPROCKET [SEE DRIVETRAIN SPROCKETS GUARDS AND BELT PG.]
-------
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

List of machines using this diagram

SCOUT BOBBER SIXTY 1000 2022
