ENGINE, OIL SYSTEM FOR SCOUT FROM 2015

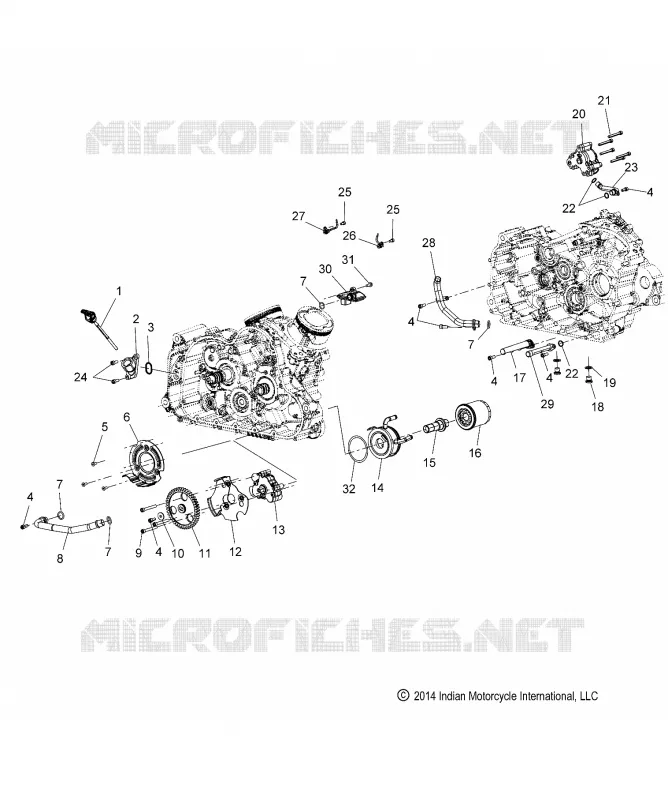

ENGINE, OIL SYSTEM

1

DIPSTICK

5451846

£38,08 Unit Price incl. VAT

2

ADAPTER DIPSTICK BRONZE

5139173-687

Not Available

3

SEAL DIPSTICK ADAPTER

5415005

£5,63 Unit Price incl. VAT

4

SCR-SH-M6X1.0X15 10.9 ZPC D204

7517775

£5,63 Unit Price incl. VAT

5

SCREW

7518817

£5,46 Unit Price incl. VAT

6

SHIELD GEAR CLUTCH

5258759

£47,87 Unit Price incl. VAT

7

O-RING

5413837

£5,63 Unit Price incl. VAT

8

TUBE PRESSURE OIL INLET

2521510

£71,09 Unit Price incl. VAT

10

WASHER

7556054

£10,60 Unit Price incl. VAT

11

GEAR OIL PUMP

5451819

£38,08 Unit Price incl. VAT

12

SHIELD GEAR OIL PUMP

5258842

£35,90 Unit Price incl. VAT

13

ASM. OIL PUMP [INCL. 11]

1205159

£167,46 Unit Price incl. VAT

14

ASM. OIL COOLER

1205160

Not Available

15

SPIGOT OIL COOLER

5139240

Not Available

16

FILTER OIL

2520799

£12,11 Unit Price incl. VAT

17

SCREEN OIL INLET SCAVENGE

2521285

£54,41 Unit Price incl. VAT

18

PLUG

7052306

£21,54 Unit Price incl. VAT

19

WASHER

5812232

£3,05 Unit Price incl. VAT

20

ASM. OIL PUMP DUAL SCAVENGE

1205110

Not Available

21

SCREW

7518348

£5,63 Unit Price incl. VAT

22

O-RING

5414100

£1,24 Unit Price incl. VAT

23

TUBE SCAVENGE INLET

2521479

£59,84 Unit Price incl. VAT

24

SCREW

7517272

£8,45 Unit Price incl. VAT

25

SCREW

7517847

£4,37 Unit Price incl. VAT

26

ASM. PISTON COOLING JET FRONT

1205134

£53,86 Unit Price incl. VAT

27

ASM. PISTON COOLING JET REAR

1205135

£53,86 Unit Price incl. VAT

28

TUBE SCAVENGE OIL RETURN

2521384

£65,62 Unit Price incl. VAT

29

PICKUP SCAVENGE

2521480

£54,41 Unit Price incl. VAT

30

ASM. OIL PICKUP

2521505

£38,08 Unit Price incl. VAT

31

SCREW

7520179

£6,57 Unit Price incl. VAT

32

O-RING [SVC]

5415708

£5,63 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
