ENGINE, PISTON AND CRANKSHAFT FOR CHIEFTAIN / CHIEFTAIN LIMITED FROM 2019

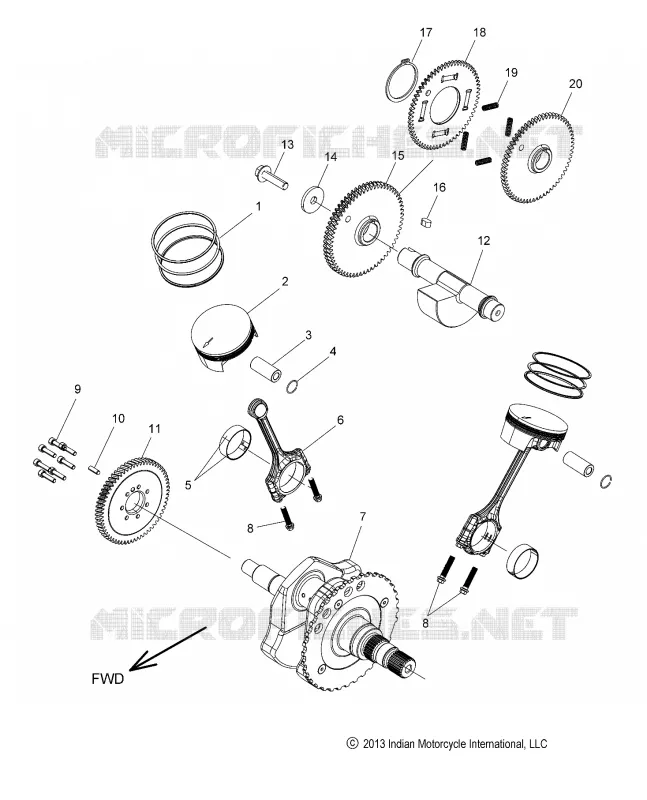

ENGINE, PISTON AND CRANKSHAFT

1

KIT RINGS PISTON [1 SET OF 3]

2203006

£76,56 Unit Price incl. VAT

2

ASM. PISTON (INCL. 1-4)

3023065

£219,79 Unit Price incl. VAT

3

PIN WRIST

5131860

£36,72 Unit Price incl. VAT

4

RING RETAINING

7710479

£8,45 Unit Price incl. VAT

5

BEARING CONNECTING ROD 52MM ORG.

3515097-002

£24,48 Unit Price incl. VAT

5

BEARING CONNECTING ROD 52MM BLK.

3515097-001

£24,48 Unit Price incl. VAT

5

BEARING CONNECTING ROD 52MM BLU

3515097-003

£24,48 Unit Price incl. VAT

6

CONNECTING ROD

3022465

Not Available

7

ASM. CRANKSHAFT [INCL. TIMING RING]

3023078

Not Available

8

SCREW

7518524

£7,51 Unit Price incl. VAT

9

SCREW

7518995

£6,57 Unit Price incl. VAT

10

PIN SOLID

3234330

£8,45 Unit Price incl. VAT

11

GEAR BALANCE DRIVE

6230804

£233,12 Unit Price incl. VAT

12

BALANCE SHAFT [BUILT FROM 9/13/17]

5141115

£247,39 Unit Price incl. VAT

13

SCREW

7519763

£6,57 Unit Price incl. VAT

14

WASHER CAM RETAINING

7556871

£8,45 Unit Price incl. VAT

15

ASM. GEAR BALANCER (INCL. 17-20)

1333423

£247,39 Unit Price incl. VAT

16

KEY

7710708

£7,51 Unit Price incl. VAT

17

RING RETAINING

7710791

£3,27 Unit Price incl. VAT

18

GEAR BALANCE SHAFT

6230805

£247,39 Unit Price incl. VAT

19

SPRING SPLIT GEAR

7044350

£5,63 Unit Price incl. VAT

20

GEAR BLANCE SHAFT BLASH

6230806

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
