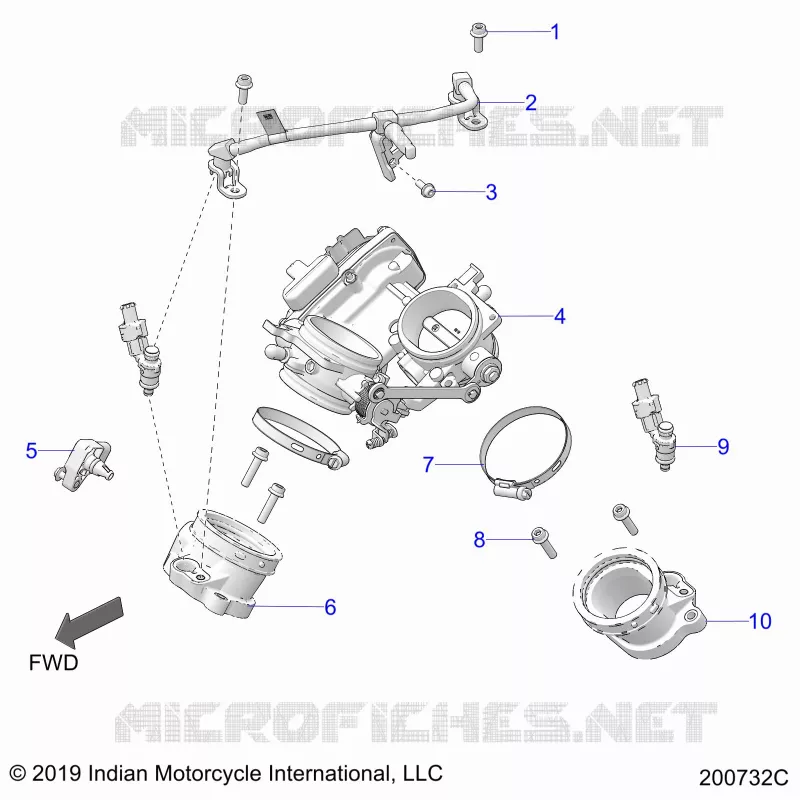

FUEL SYSTEM, FUEL RAIL/THROTTLE BODY

1

SCREW

7518803

£5,46 Unit Price incl. VAT

2

RAIL-FUEL V-TWIN 4-BAR

2521857

£188,39 Unit Price incl. VAT

3

SCREW-SOCFLGHD M5X0.8 12

7518875

£5,63 Unit Price incl. VAT

4

THROTTLE-DUAL BORE 52MM ETC

1205796

£676,91 Unit Price incl. VAT

5

SPROCKET [SEE DRIVETRAIN SPROCKETS GUARDS AND BELT PG.]

-------

Not Available

6

ADAPTOR-THROTTLE BODY FRONT

5415354

£104,66 Unit Price incl. VAT

7

CLAMP-NARROW SLOTTED 50-70MM

7082230

£7,51 Unit Price incl. VAT

8

SCREW-SHFL M6X1.0X25 RIE SP

7520344

£5,46 Unit Price incl. VAT

9

INJECTOR-FUEL [INCL. O-RINGS]

2521504

£92,97 Unit Price incl. VAT

10

ADAPTOR-THROTTLE BODY REAR

5415511

£104,66 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
