STARTER MOTOR
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, INPUT/OUTPUT SHAFT ASM.
by
CAM CHAIN AND SPROCKETS

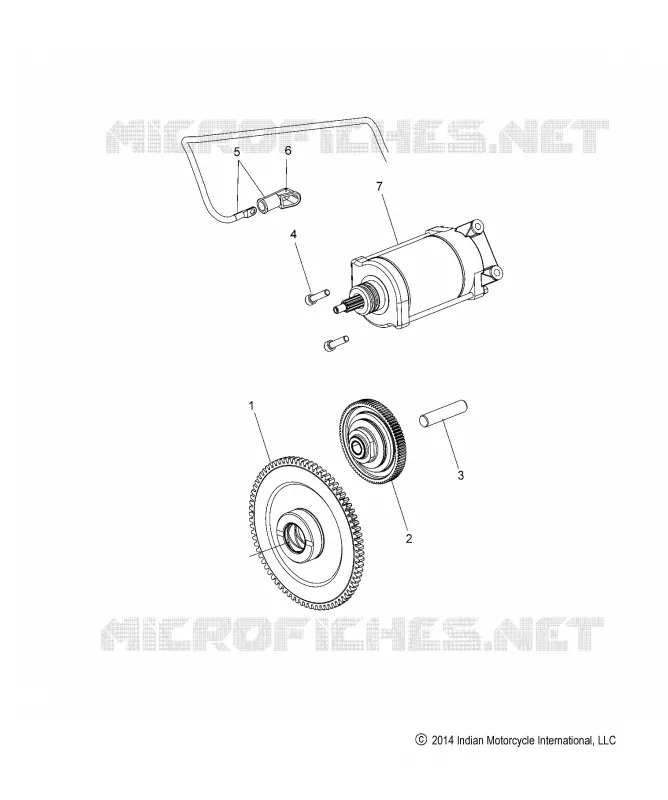

STARTER MOTOR
1
2
3
4
5
6
7
1
ASM. GEAR STARTER CRANK
1204415
1208774
£180,78 Unit Price incl. VAT
2
ASM. TORQUE LIMITER GEAR
1204571
3024038
£128,45 Unit Price incl. VAT
3
PIN TORQUE LIMIT GEAR
3022416
£24,48 Unit Price incl. VAT
4
SCREW
7517259
£6,57 Unit Price incl. VAT
5
CABLE STARTER [INCL. BOOT]
4014328
£32,64 Unit Price incl. VAT
6
BOOT TERMINAL BLK
5414046
£9,79 Unit Price incl. VAT
7
ASM. STARTER MOTOR
4015260
4017209
£306,85 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
