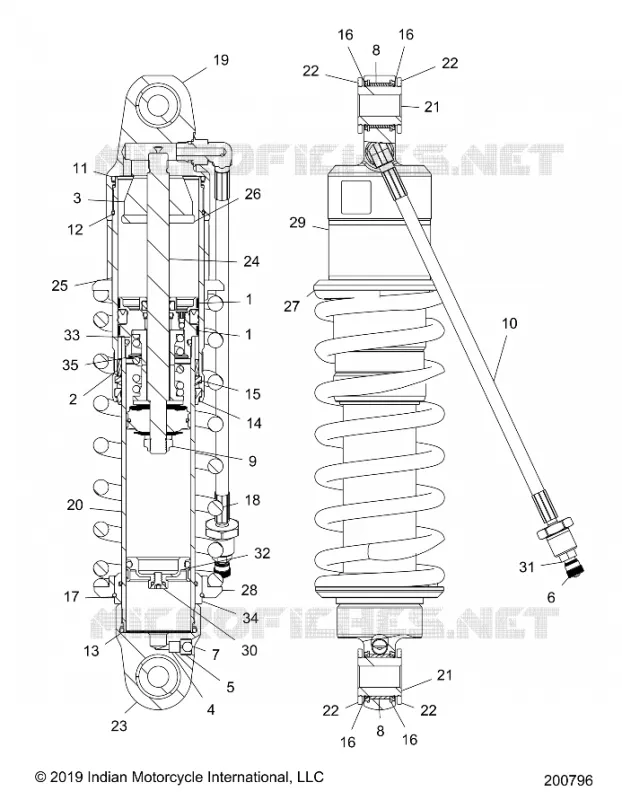

SHOCK ABSORBER FOR CHIEF VINTAGE FROM 2020

SHOCK ABSORBER

-

SHOCK-REAR STD (INCL. ALL)

1544281

£800,35 Unit Price incl. VAT

1

BEARING EXTERNAL

1500982

£19,58 Unit Price incl. VAT

2

BEARING INT. 1.66 SHAFT

1501123

£29,38 Unit Price incl. VAT

3

BUMPER

1500440

£70,09 Unit Price incl. VAT

4

PELLET AIR VALVE

1500724

Not Available

5

SCREW SET PELLET RETAINER AIR VALVE

1500723

£34,27 Unit Price incl. VAT

6

CAP-AIR VALVE

1500955

Not Available

7

Valve Housing Complete

1500206

Not Available

8

BUSHING EYELET

1501010

£24,48 Unit Price incl. VAT

9

NUT LOCK 3/8-24

1500016

£15,66 Unit Price incl. VAT

10

HOSE SS BRAID 10#

1501217

£150,71 Unit Price incl. VAT

11

O-RING

1501129

£7,88 Unit Price incl. VAT

12

O-RING

1500537

£9,01 Unit Price incl. VAT

13

O-RING .103W-1.549ID

1500108

£10,76 Unit Price incl. VAT

14

WIPER SAMURAI

1501130

£35,90 Unit Price incl. VAT

15

WIPER A/N

1501131

£35,90 Unit Price incl. VAT

16

WEATHER SEAL

1501014

£16,54 Unit Price incl. VAT

17

Wire Retaining Ring

1500538

Not Available

18

PISTON

*******

Not Available

19

PISTON

*******

Not Available

20

BODY 1.159 DIA BORE 6.7 TLG FLOAT

1500977

Not Available

21

PISTON

*******

Not Available

22

PISTON

*******

Not Available

23

PISTON

*******

Not Available

24

PISTON

*******

Not Available

25

PISTON

*******

Not Available

26

PISTON

*******

Not Available

27

RETAINER SPRING UPPER

1500991

£71,81 Unit Price incl. VAT

28

RETAINER SPRING LOWER

1500988

£71,81 Unit Price incl. VAT

29

PISTON

*******

Not Available

30

SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE COMPLETE

1500161

£44,06 Unit Price incl. VAT

31

ASM. AIR VALVE

1500996

£71,81 Unit Price incl. VAT

32

ASM. PISTON FLOAT

1501154

Not Available

33

ASM. BEARING .498 SHAFT

1501181

Not Available

34

SLEEVE LOWER FLOAT

1501183

Not Available

35

GUIDE NEGATIVE SPRING

1501184

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
