1
Engine displacement
1100
2
Year
2016
3
Trim
SCOUT
4
Parts Catalog
FRONT WHEEL
5
Parts Diagram
Parts Catalog
REAR SUSPENSION ASM., SWING ARM AND SHOCKS
by

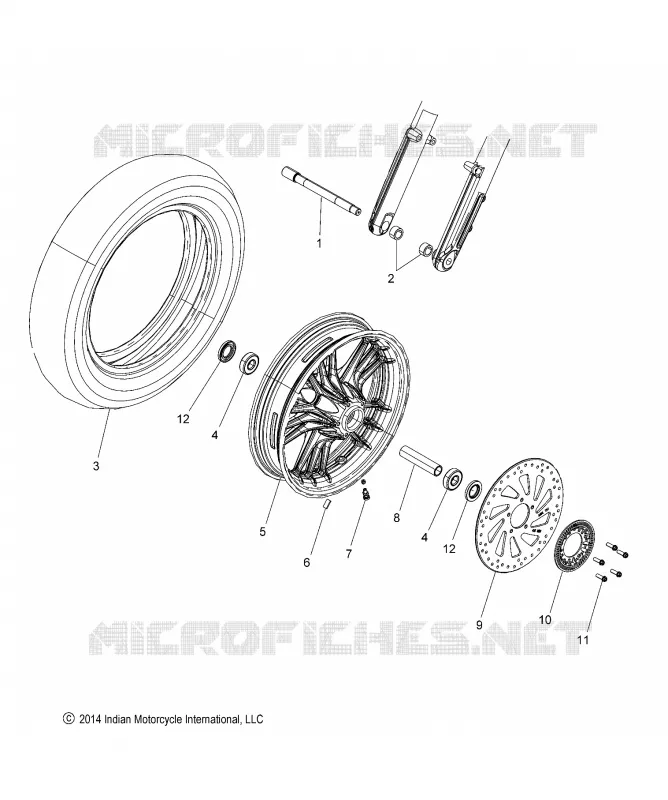

FRONT WHEEL
1
2
3
4
4
5
6
7
8
9
10
11
12
12
1
AXLE FRONT
5138767
£39,17 Unit Price incl. VAT
2
SPACER BEARING REAR LH
5631479
£5,24 Unit Price incl. VAT
3
TIRE FRONT 130/90-16 772
5415575
£154,14 Unit Price incl. VAT
4
BEARING
3514405
£24,48 Unit Price incl. VAT
5
WHEEL FRONT 16 IN. CAST BLK MACH. [INCL. 4 7 8]
1522090-266M
£685,91 Unit Price incl. VAT
6
WEIGHT STEEL 5 G BLK
1521682
Not Available
7
VALVE RIM
1521312
£15,66 Unit Price incl. VAT
8
SPACER WHEEL
5337827
£24,48 Unit Price incl. VAT
9
ROTOR
1912076
£144,43 Unit Price incl. VAT
10
RING TONE ABS [ABS MODELS ONLY]
5257890
£85,31 Unit Price incl. VAT
11
SCREW
7518661
7521014
£2,62 Unit Price incl. VAT
12
SEAL
3610094
£39,17 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
