1
Engine displacement
1800
2
Year
2016
3
Trim
chieftain-chieftain-dark-horse-roadmaster
4
Parts Catalog

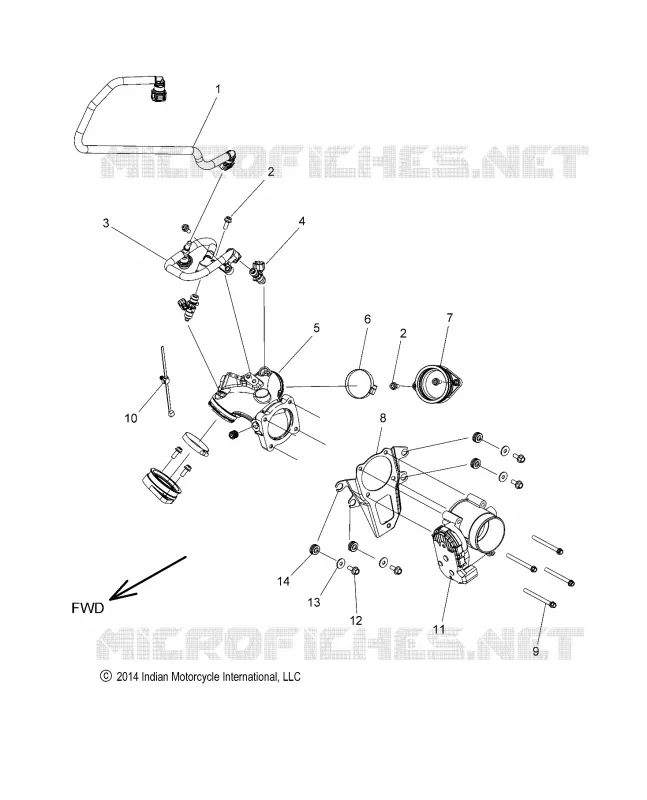

FUEL SYSTEM, FUEL RAIL/THROTTLE BODY
5
Parts Diagram
Parts Catalog
CYLINDER
by
FUEL SYSTEM, FUEL TANK MOUNTING
FUEL SYSTEM, FUEL RAIL/THROTTLE BODY
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
1
LINE FUEL
5414515
£115,12 Unit Price incl. VAT
2
SCREW
7518803
£5,46 Unit Price incl. VAT
3
ASM. FUEL RAIL
2521522
£313,99 Unit Price incl. VAT
4
O-RING-BOSCH EV-14 UPPER BLUE [BLACK][1 PER INJECTOR]
1500198
£12,24 Unit Price incl. VAT
4
O-RING [BROWN][1 PER INJECTOR]
5412891
£1,96 Unit Price incl. VAT
4
INJECTOR FUEL
2521332
£298,29 Unit Price incl. VAT
5
MANIFOLD INTAKE
5138214
Not Available
6
CLAMP NARROW
7082021
£6,57 Unit Price incl. VAT
7
ADAPTOR INTAKE MANIFOLD
1204709
£35,90 Unit Price incl. VAT
8
BRKT. SUPPORT INTAKE MANIFOLD
5259785
5271378
£40,80 Unit Price incl. VAT
9
SCREW
7517682
£8,45 Unit Price incl. VAT
10
CLIP-ROUTING
7081496
£5,63 Unit Price incl. VAT
11
ASM. THROTTLE BODY
1204685
£537,55 Unit Price incl. VAT
12
SCREW
7518591
£2,03 Unit Price incl. VAT
13
WASHER
7556064
£5,63 Unit Price incl. VAT
14
ISOLATOR
5414603
£5,63 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
