1
Engine displacement
1100
2
Year
2016
3
Trim
SCOUT
4
Parts Catalog
ENGINE, COVER ASM., PRIMARY AND CLUTCH
5
Parts Diagram
Parts Catalog
CAM CHAIN AND SPROCKETS
by
STARTER MOTOR

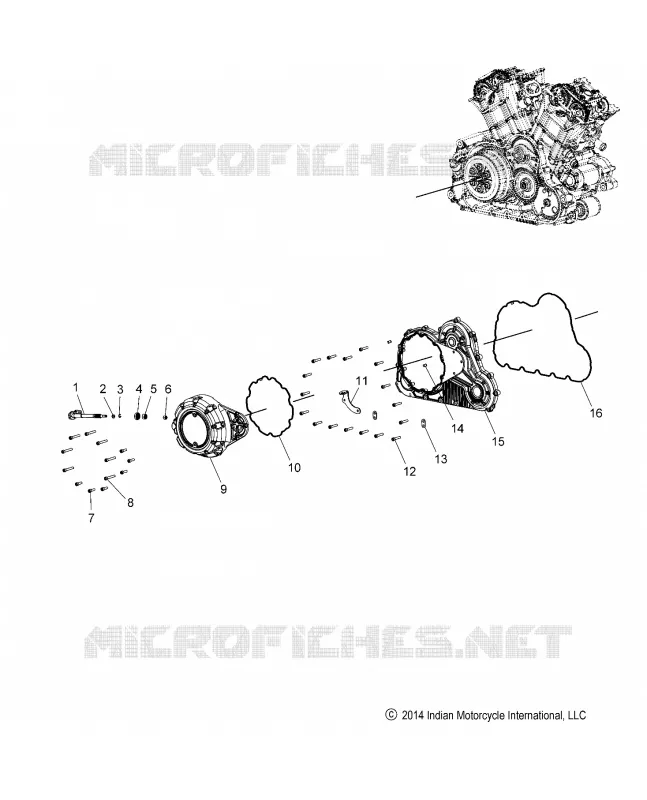

ENGINE, COVER ASM., PRIMARY AND CLUTCH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
SHAFT CLUTCH PINION
6230774
£118,13 Unit Price incl. VAT
2
WASHER
7555872
£6,55 Unit Price incl. VAT
3
RING RETAINING
7710638
£1,49 Unit Price incl. VAT
4
SEAL SHAFT
3610154
£11,27 Unit Price incl. VAT
5
BEARING NDL M12X16X10 CLTSHF
3552105
£24,48 Unit Price incl. VAT
6
BEARING NDL
3512106
£24,48 Unit Price incl. VAT
7
SCREW
7517384
£10,76 Unit Price incl. VAT
8
SCREW
7517261
£7,88 Unit Price incl. VAT
9
ASM. COVER CLUTCH [INCL. 4-6 14]
1204700-156
£571,46 Unit Price incl. VAT
10
GASKET
5414746
£44,06 Unit Price incl. VAT
11
BRACKET CABLE CLUTCH
5259878
£34,27 Unit Price incl. VAT
12
SCREW
7517301
£3,92 Unit Price incl. VAT
13
BRACKET CABLE MOUNT
5258982
£6,76 Unit Price incl. VAT
14
PIN DOWEL
5132835
£3,92 Unit Price incl. VAT
15
ASM. COVER PRIMARY DRIVE BRONZE [INCL. 14]
1205196-687
Not Available
16
GASKET PRIMARY DRIVE
5414563
£80,54 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
