ENGINE, PISTON AND CRANKSHAFT FOR SCOUT SIXTY FROM 2021

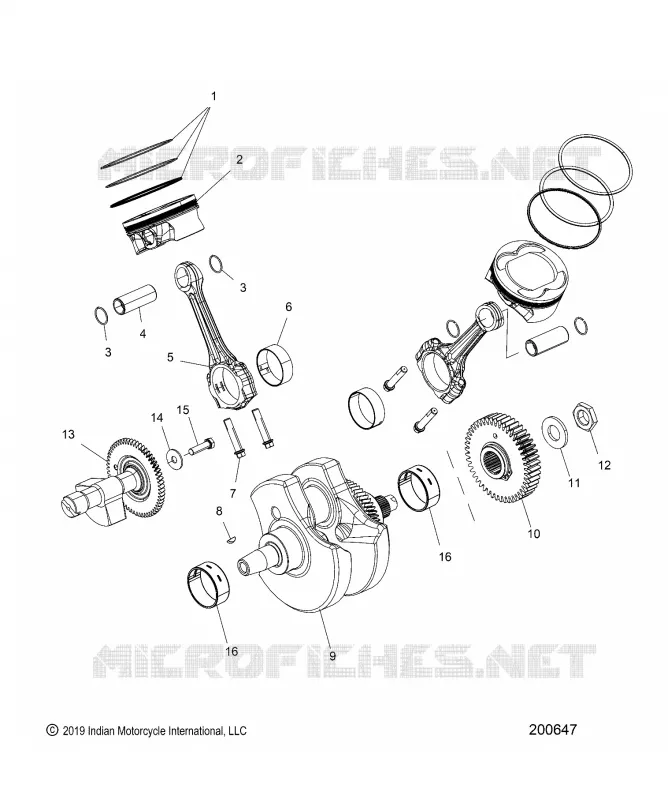

ENGINE, PISTON AND CRANKSHAFT

1

KIT RINGS PISTON (STANDARD)

2206358

£111,56 Unit Price incl. VAT

2

ASM. PISTON [INCL. RINGS PIN RET. RINGS]

3022762

£213,50 Unit Price incl. VAT

3

RING RETAINING

7710479

£10,14 Unit Price incl. VAT

4

PIN PISTON

3022291

£58,75 Unit Price incl. VAT

5

ASM. CONNECTING ROD [INCL. 7]

3023055

£353,95 Unit Price incl. VAT

6

BEARING-ROD 48X51X17 LD GRD 1

3515027-001

£24,48 Unit Price incl. VAT

6

BEARING-ROD 48X51X17 LD GRD 2

3515027-002

£24,48 Unit Price incl. VAT

6

BEARING-MAIN 48X51X17 LD GRD 3

3515027-003

£24,48 Unit Price incl. VAT

7

BOLT CONNECTING ROD

7520356

£29,38 Unit Price incl. VAT

8

KEY WOODRUFF

7721122

£10,14 Unit Price incl. VAT

9

ASM. CRANKSHAFT [INCL. 8]

3023558

£1 499,17 Unit Price incl. VAT

10

ASM. GEAR CRANKSHAFT [INCL. 16 17]

1333532

£302,58 Unit Price incl. VAT

11

WASHER

7556518

£12,72 Unit Price incl. VAT

12

NUT

7547477

£19,58 Unit Price incl. VAT

13

ASM. BALANCE SHAFT

1205618

£276,30 Unit Price incl. VAT

14

WASHER

7556771

£12,72 Unit Price incl. VAT

15

SCREW

7518575

£29,38 Unit Price incl. VAT

16

BEARING-MAIN 56X60X23 UP GRD 2

3515065-002

Not Available

16

BEARING-MAIN 56X60X23 UP GRD 3

3515065-003

Not Available

16

BEARING-MAIN 56X60X23 UP GRD 1

3515065-001

Not Available

16

BEARING-MAIN 56X60X23 LW GRD 3

3515066-003

Not Available

16

BEARING-MAIN 56X60X23 LW GRD 1

3515066-001

Not Available

16

BEARING-MAIN 56X60X23 LW GRD 2

3515066-002

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
