1
Engine displacement
1200
2
Year
2018
3
Trim
SCOUT 1200
4
Parts Catalog
BRAKES, MASTER CYL., FRONT AND REAR
5

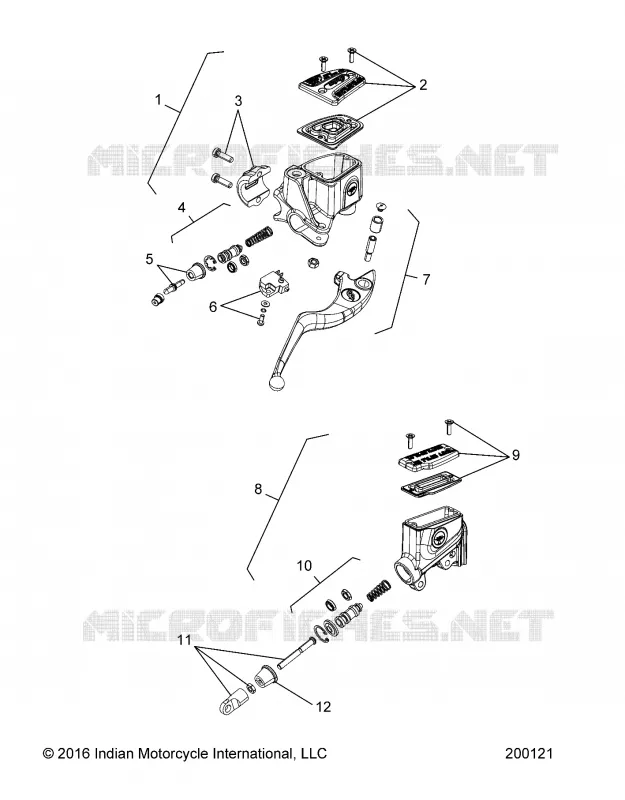

Parts Diagram
Parts Catalog
FRONT BRAKE ASM.
by
DRIVE TRAIN, CLUTCH
BRAKES, MASTER CYL., FRONT AND REAR
1
2
3
4
5
6
7
8
9
10
11
12
1
ASM. MASTER CYLINDER HNDLBR BLK [INCL. 2-8]
1912523-658
£489,83 Unit Price incl. VAT
2
K-COVER GASKET FRMC [INCL. COVER GASKET SCREWS]
2206175
2208906
£150,71 Unit Price incl. VAT
3
K-CLAMP FRMC [INCL. SCREWS]
2206176
£53,69 Unit Price incl. VAT
4
K-REBUILD HBMC [INCL. BOOT]
2206152
£118,13 Unit Price incl. VAT
5
KIT DUST BOOT [ALSO INCL. SNAP RING]
2206155
£71,81 Unit Price incl. VAT
6
K-SWITCH FRMC [INCL. SCREW AND WASHER]
2206156
£44,06 Unit Price incl. VAT
7
K-LEVER FRMC [INCL. LEVER BUSHING PIVOT PIN NUT]
2206177
2207725
£163,27 Unit Price incl. VAT
8
ASM. MASTER CYLINDER REAR BLK [INCL. 6-9][VIN 56KSMB005G3117079 AND AFTER]
1912524-266
1913925-468
£111,56 Unit Price incl. VAT
9
K-COVER GASKET RRMC [INCL. COVER GASKET SCREWS]
2206174
2208907
£131,24 Unit Price incl. VAT
10
K-REBUILD RMC [INCL. 9]
2206148
£131,24 Unit Price incl. VAT
11
K-PUSHROD RMC
2206149
£91,87 Unit Price incl. VAT
12
K-DUSTBOOT RMC
2206151
£53,69 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
