1
Engine displacement
1900
2
Year
2020
3
Trim
CHIEFTAIN LIMITED
4
Parts Catalog

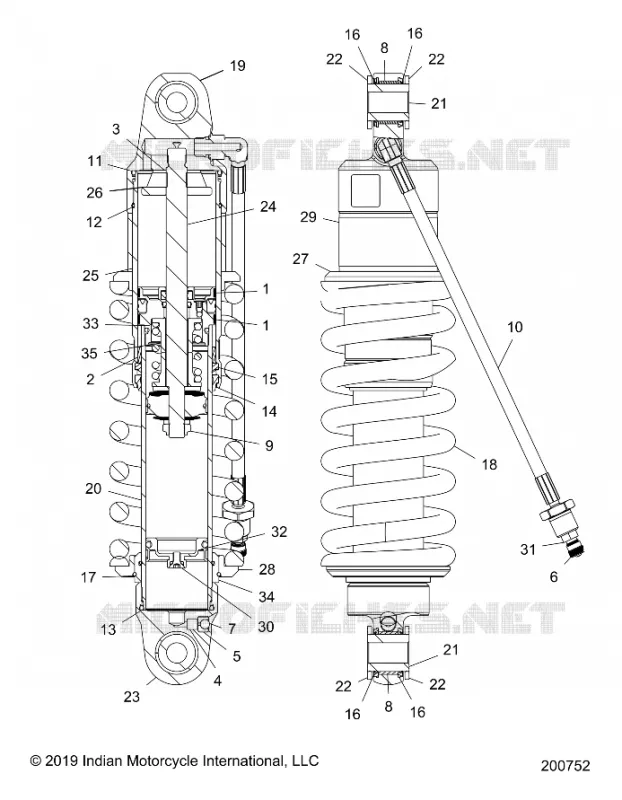

SHOCK ABSORBER
5
Parts Diagram
Parts Catalog
OIL COOLER
by
BRAKES, BRAKE LINE, FRONT, ABS
SHOCK ABSORBER
-
1
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
16
16
16
17
18
18
20
18
18
18
18
18
18
18
18
18
18
27
18
18
30
31
32
33
34
35
-
SHOCK-REAR LOW (INCL. ALL)
1544279
£800,35 Unit Price incl. VAT
1
BEARING EXTERNAL
1500982
£19,58 Unit Price incl. VAT
2
BEARING INT. 1.66 SHAFT
1501123
£29,38 Unit Price incl. VAT
3
BUMPER .498x.40TLG
1501102
£21,53 Unit Price incl. VAT
4
PELLET AIR VALVE
1500724
Not Available
5
SCREW SET PELLET RETAINER AIR VALVE
1500723
£34,27 Unit Price incl. VAT
6
CAP AIR VALVE
1500995
£15,79 Unit Price incl. VAT
7
BALL AIR VALVE 7/32
1500722
£5,24 Unit Price incl. VAT
8
BUSHING EYELET
1501010
£24,48 Unit Price incl. VAT
9
NUT LOCK 3/8-24
1500016
£15,66 Unit Price incl. VAT
10
HOSE SS BRAID 10#
1501217
£150,71 Unit Price incl. VAT
11
O-RING
1501129
£7,88 Unit Price incl. VAT
12
O-RING
1500537
£9,01 Unit Price incl. VAT
13
O-RING .103W-1.549ID
1500108
£10,76 Unit Price incl. VAT
14
WIPER SAMURAI
1501130
£35,90 Unit Price incl. VAT
15
WIPER A/N
1501131
£35,90 Unit Price incl. VAT
16
WEATHER SEAL
1501014
£16,54 Unit Price incl. VAT
17
Wire Retaining Ring
1500538
Not Available
18
PISTON
*******
Not Available
19
PISTON
*******
Not Available
20
BODY 1.159 DIA BORE 6.7 TLG FLOAT
1500977
Not Available
21
PISTON
*******
Not Available
22
PISTON
*******
Not Available
23
PISTON
*******
Not Available
24
PISTON
*******
Not Available
25
PISTON
*******
Not Available
26
PISTON
*******
Not Available
27
RETAINER SPRING UPPER
1500991
£71,81 Unit Price incl. VAT
28
PISTON
*******
Not Available
29
PISTON
*******
Not Available
30
SCREW - BLACK RES.
1501303
1501341
£44,06 Unit Price incl. VAT
31
ASM. AIR VALVE
1500996
£71,81 Unit Price incl. VAT
32
ASM. PISTON FLOAT
1501154
Not Available
33
ASM. BEARING .498 SHAFT
1501181
Not Available
34
SLEEVE LOWER FLOAT
1501183
Not Available
35
GUIDE NEGATIVE SPRING
1501184
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
