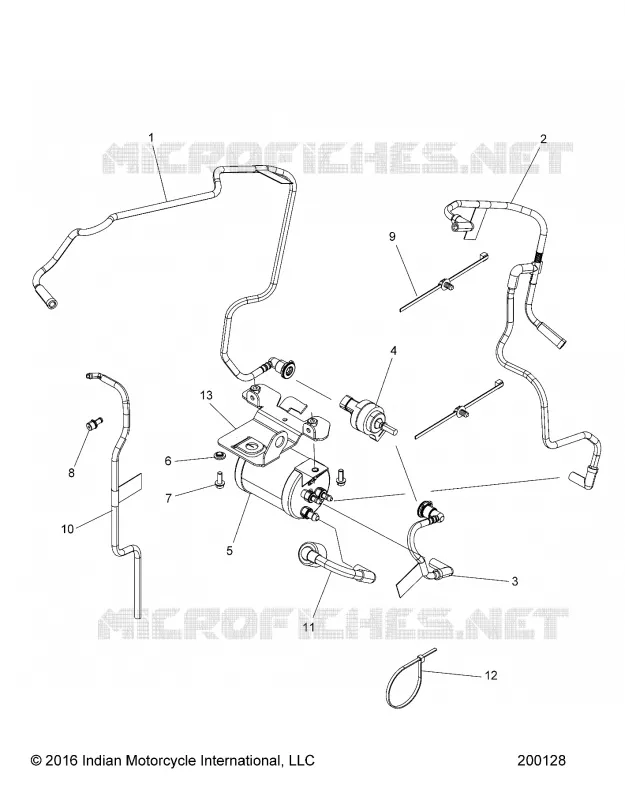

FUEL SYSTEM, EVAP SYSTEM, CALI./INTL FOR SCOUT BOBBER FROM 2019

FUEL SYSTEM, EVAP SYSTEM, CALI./INTL

1

LINE PURGE TO TB

5451674

£71,81 Unit Price incl. VAT

2

LINE VENT TO CANISTER

5450691

£85,31 Unit Price incl. VAT

3

LINE CANISTER TO PURGE

5450692

£43,08 Unit Price incl. VAT

4

VALVE CANISTER PURGE

4011303

£77,56 Unit Price incl. VAT

5

FILTER ACTIVATED CHARCOAL

2521752

£128,45 Unit Price incl. VAT

6

BUSHING CARBON CAN

5139063

£9,01 Unit Price incl. VAT

7

SCREW

7518803

£6,55 Unit Price incl. VAT

8

FITTING EVAP LINE

5138799

£18,66 Unit Price incl. VAT

9

CLIP-ROUTING

7081496

£6,76 Unit Price incl. VAT

10

LINE WATER/VENT TO GRND

5453068

£50,27 Unit Price incl. VAT

11

TUBE-VENT CANISTER

5453432

£50,27 Unit Price incl. VAT

12

PANDUIT STRAP

7080138

£2,84 Unit Price incl. VAT

13

ASM-BRKT MNT LWR

1022286

£39,17 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
