1
Engine displacement
1720
2
Year
2013
3
Trim
chief-classic-dark-horse-vintage
4
Parts Catalog
DRIVE TRAIN, TRANSMISSION SHAFTS AND GEARS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, CLUTCH CONTROL
by
ELECTRICAL, ELECTRONIC CONTROL MODULE AND COIL

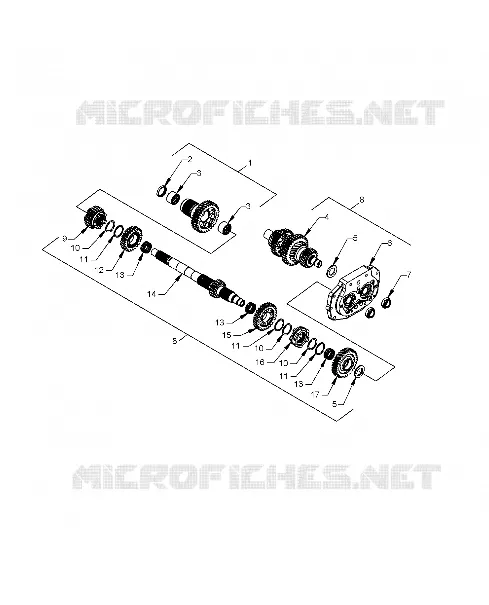

DRIVE TRAIN, TRANSMISSION SHAFTS AND GEARS
1
2
6
6
4
5
5
6
7
8
8
9
10
10
10
11
11
11
12
13
13
13
14
15
16
17
1
Asm. Output Gear
N20200003
Not Available
2
Seal Input Shaft/Output Gear
N71200003
Not Available
3
Regulator Fuel Pressure
*********
Not Available
4
Asm. Countershaft
N20200005
Not Available
5
Spacer Trans. Shaft
N70400041
Not Available
7
Nut Nylok
N70300014
Not Available
8
Asm. Trapdoor w/Shafts CHR
N20600008
Not Available
9
Gear 2nd Mainshaft 22T
N20300000
Not Available
10
Ring Ret. Ext.
N70500007
Not Available
11
Washer Thrust Trans Gear
N70400040
Not Available
12
Gear 3rd Mainshaft 26T
N20300001
Not Available
13
Bearing Needle Split
N71300004
Not Available
14
Mainshaft
N20200000
Not Available
15
Gear 4th Mainshaft 27T
N20300002
Not Available
16
Dog Clutch Mainshaft
N20900001
Not Available
17
Gear 5th Mainshaft 32T
N20300003
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
