1
Engine displacement
1720
2
Year
2013
3
Trim
chief-classic-dark-horse-vintage
4
Parts Catalog

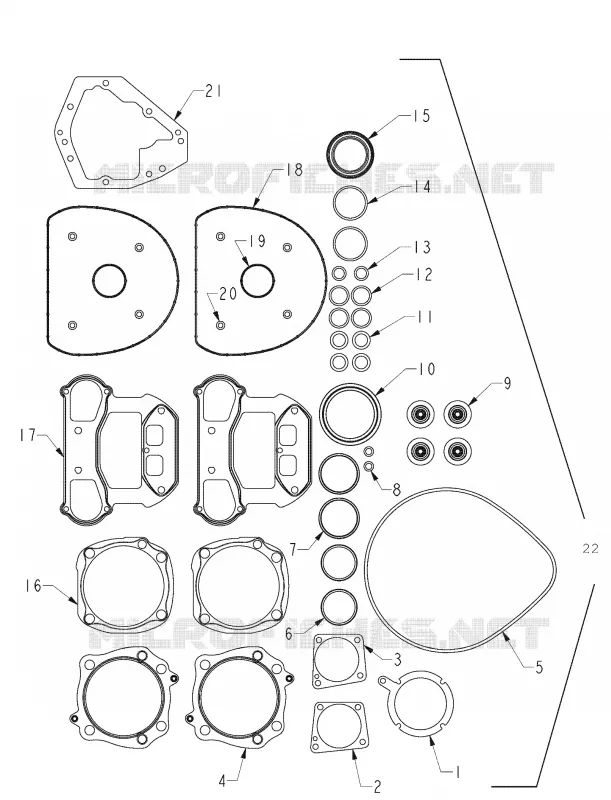

ENGINE GASKET SET COMPLETE
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM
by
OIL PUMP GASKET KIT
ENGINE GASKET SET COMPLETE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Gasket Velocity Stack
N10600000
Not Available
2
Gasket Front Lifter Block
N10601179
Not Available
3
Gasket Rear Lifter Block
N10601178
Not Available
4
Gasket Head
N10601266
£70,85 Unit Price incl. VAT
5
Seal Airbox Cover
N11200006
Not Available
6
Gasket Exhaust
N50701319
Not Available
7
Seal Intake Flange
N11201213
Not Available
8
Washer Rubber
N70400006
Not Available
9
Seal Valve High Temp
N10900019
Not Available
10
Seal Throttle Body Backplate
N71200000
Not Available
11
O-Ring .671 ID
N73000004
Not Available
12
O-RIng .862 ID
N73000003
Not Available
13
O-Ring .549 ID
N73000001
Not Available
14
O-RIng 1.612 ID
N73000000
Not Available
15
Seal Main LH
N71201250
Not Available
16
Gasket Base
N10601268
Not Available
17
Gasket Rocker Box
N10600001
Not Available
18
Seal Rocker Box
N10601259
Not Available
19
Seal Chimney
N10001260
Not Available
20
Seal Underwasher
N10601924
Not Available
21
Gasket Cam Cover
N10601252
Not Available
22
Kit Engine Gasket Complete
N90100009
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
