1
Engine displacement
1200
2
Year
2022
3
Trim
FTR 1200 CARBON
4
Parts Catalog
DRIVE TRAIN, INPUT AND OUTPUT SHAFTS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, CLUTCH AND RELATED
by
DRIVE TRAIN, SHIFT PEDAL AND LINKAGE

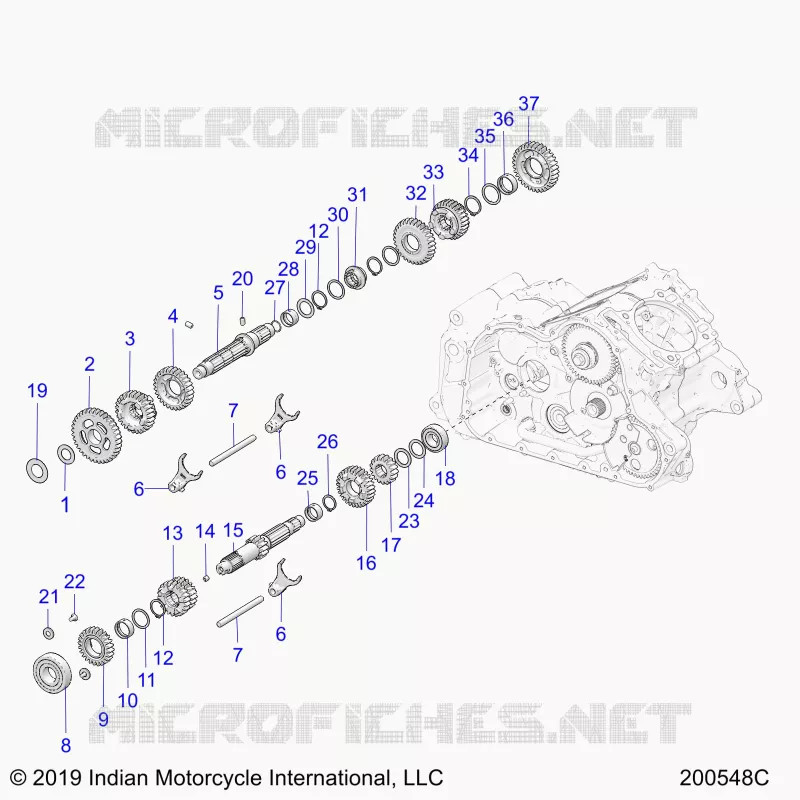

DRIVE TRAIN, INPUT AND OUTPUT SHAFTS
-
1
2
3
4
5
6
6
6
7
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
-
ASM-OUTPUT 6 SPEED [INCL. 1-5 12 20 27-37]
1334510
Not Available
-
ASM-INPUT 6 SPEED [INCL. 9-17 23-26]
1334509
Not Available
1
WASHER FLAT
7556909
£6,76 Unit Price incl. VAT
2
GEAR OUTPUT 1ST
6230938
£216,94 Unit Price incl. VAT
3
GEAR 5TH OUTPUT
6230847
£205,52 Unit Price incl. VAT
4
GEAR-4TH OUTPUT
6231156
Not Available
5
SHAFT OUTPUT
6230848
£332,82 Unit Price incl. VAT
6
FORK SHIFT
5138520
£85,31 Unit Price incl. VAT
7
RAIL SHIFT FORK
5138750
£35,90 Unit Price incl. VAT
8
BEARING BALL
3514884
£39,17 Unit Price incl. VAT
9
GEAR-5TH INPUT
6231157
Not Available
10
BUSHING PLAIN
6230940
£24,48 Unit Price incl. VAT
11
WASHER FLAT
7556903
£10,14 Unit Price incl. VAT
12
RING RETAINING EXT. 28MM
7710801
£12,72 Unit Price incl. VAT
13
GEAR-3RD/4TH INPUT
6231151
Not Available
14
PLUG-OIL M8
2521423
£52,22 Unit Price incl. VAT
15
SHAFT INPUT AND 1ST GEAR
6230839
£238,63 Unit Price incl. VAT
16
GEAR-6TH INPUT
6231152
Not Available
17
GEAR 2ND INPUT
6230835
£188,39 Unit Price incl. VAT
18
BEARING BALL
3514810
3515833
£24,48 Unit Price incl. VAT
19
PLATE OIL DEFLECTOR
5259394
£9,91 Unit Price incl. VAT
20
RESTRICTOR OIL
5138744
£32,64 Unit Price incl. VAT
21
PLATE BEARING RETAINER
5138188
£6,76 Unit Price incl. VAT
22
SCREW
7517598
£12,72 Unit Price incl. VAT
23
WASHER FLAT
7556904
£7,88 Unit Price incl. VAT
24
WASHER
7556905
£6,76 Unit Price incl. VAT
25
BUSHING PLAIN
6230837
£29,38 Unit Price incl. VAT
26
RING RETAINING
7710802
£7,88 Unit Price incl. VAT
27
O-RING
5415457
£10,14 Unit Price incl. VAT
28
BUSHING PLAIN
6230939
£24,48 Unit Price incl. VAT
29
WASHER FLAT
7556906
£6,76 Unit Price incl. VAT
30
WASHER FLAT
7556908
£6,76 Unit Price incl. VAT
31
BUSHING SPLINED
6230846
£67,12 Unit Price incl. VAT
32
GEAR-3RD OUTPUT
6231154
Not Available
33
GEAR-6TH OUTPUT
6231054
£207,23 Unit Price incl. VAT
34
RING RETAINING EXT. 30MM
7710803
£7,88 Unit Price incl. VAT
35
WASHER FLAT TTH
7556907
£6,76 Unit Price incl. VAT
36
BUSHING PLAIN
6230845
£34,27 Unit Price incl. VAT
37
GEAR-2ND OUTPUT
6231153
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
