DRIVE TRAIN, CLUTCH AND PRIMARY DRIVE FOR CHIEFTAIN / CHIEFTAIN LIMITED FROM 2018

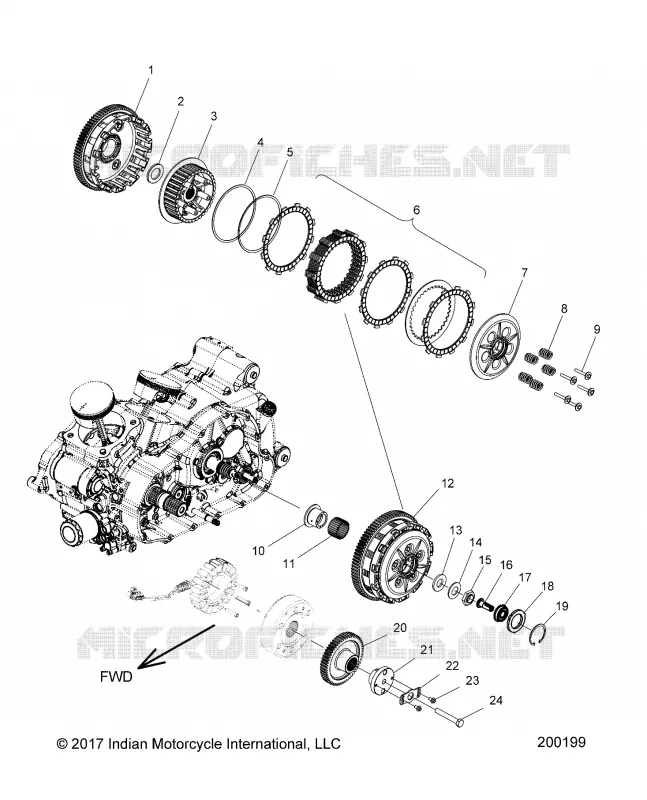

DRIVE TRAIN, CLUTCH AND PRIMARY DRIVE

1

ASM BASKET OUTER CLUTCH

1333061

£801,35 Unit Price incl. VAT

2

WASHER THRUST

7556747

£36,72 Unit Price incl. VAT

3

HUB CLUTCH INNER

5138090

£225,02 Unit Price incl. VAT

4

SEAT JUDDER SPRING

5256848

£59,66 Unit Price incl. VAT

5

SPRING JUDDER CLUTCH

7043878

£60,15 Unit Price incl. VAT

6

KIT CLUTCH PACK [INCL. ALL FRICTION AND SEPERATOR PLATES]

2205282

£376,79 Unit Price incl. VAT

7

PLATE PRESSURE

5138284

£130,82 Unit Price incl. VAT

8

SPRING CLUTCH

7043929

£65,62 Unit Price incl. VAT

9

SCREW

7519767

£5,63 Unit Price incl. VAT

10

COLLAR BEARING

5138283

£125,59 Unit Price incl. VAT

11

BEARING NEEDLE

3514791

£92,97 Unit Price incl. VAT

12

ASM. CLUTCH [INCL. 1- 9]

1333060

£1 304,07 Unit Price incl. VAT

13

WASHER

7556518

£10,60 Unit Price incl. VAT

14

SPRING DISC

7556519

£41,89 Unit Price incl. VAT

15

NUT

7547477

£16,32 Unit Price incl. VAT

16

CLUTCH LIFT RACK

6230980

£60,15 Unit Price incl. VAT

17

BEARING BALL

3514683

Not Available

18

PLATE CLUTCH LIFTER

5137169

Not Available

19

RING RETAINING INTERNAL

7710651

£2,18 Unit Price incl. VAT

20

GEAR-PRIMARY DRIVE

6230978

£252,15 Unit Price incl. VAT

21

ADAPTER-COLD TEST SPLINED

6230976

£109,37 Unit Price incl. VAT

22

PLATE-LOCK CRANK/COMP

5262886

£11,02 Unit Price incl. VAT

23

SCREW

7517257

£9,79 Unit Price incl. VAT

24

SCREW

7519819

£32,64 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
