OIL PUMP/OIL SYSTEM FOR CHALLENGER ELITE FROM 2022

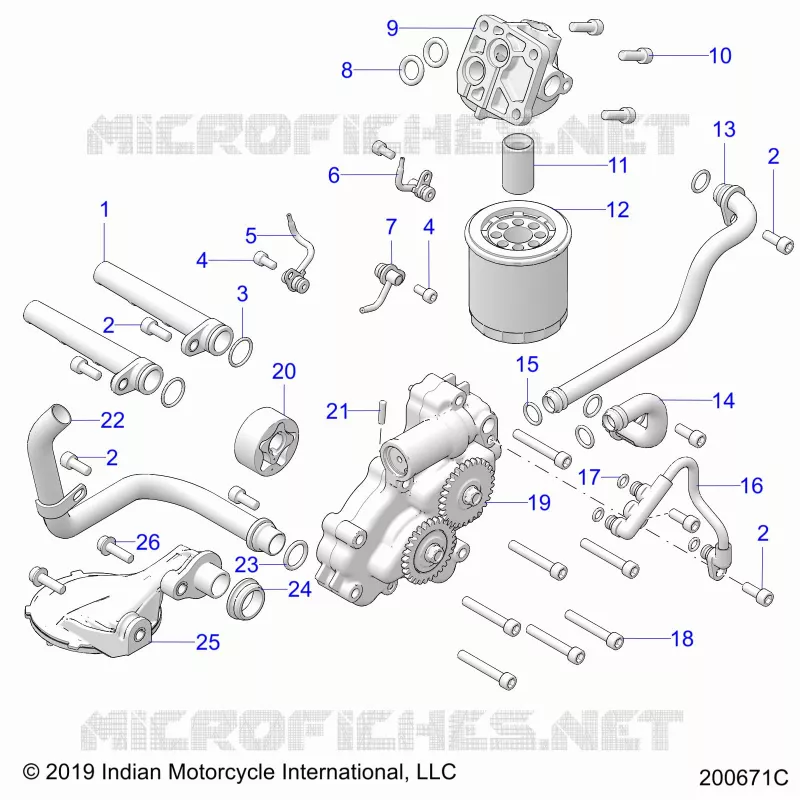

OIL PUMP/OIL SYSTEM

1

SCREEN OIL INLET SCAVENGE

2521285

£65,29 Unit Price incl. VAT

2

SCREW

7517272

£10,14 Unit Price incl. VAT

3

O-RING -017

5414596

£3,28 Unit Price incl. VAT

4

SCREW

7517847

£5,24 Unit Price incl. VAT

5

ASM. PISTON COOLING JET REAR

1205135

£64,63 Unit Price incl. VAT

6

ASM. PISTON COOLING JET FRONT

1205134

£64,63 Unit Price incl. VAT

7

CAM CHAIN OIL JET

1205998

£64,63 Unit Price incl. VAT

8

O-RING

5411356

£3,92 Unit Price incl. VAT

9

ADAPTER-FILTER MACHINED

5143352

£65,29 Unit Price incl. VAT

10

SCREW

7517384

£10,76 Unit Price incl. VAT

11

ADAPTER FILTER STRAIGHT

2521530

£50,27 Unit Price incl. VAT

12

FILTER OIL

2521421

£14,53 Unit Price incl. VAT

13

TUBE-PRESSURE OIL FEED

2521769

£64,63 Unit Price incl. VAT

14

TUBE-OIL SCAVANGE

2521827

£111,56 Unit Price incl. VAT

15

O-RING 12MMX2MM

5414047

£5,89 Unit Price incl. VAT

16

TUBE-INPUT SHAFT FEED (INCL. 17)

2521548

£124,68 Unit Price incl. VAT

17

O-RING

5414595

£3,28 Unit Price incl. VAT

18

SCREW

7517261

£7,88 Unit Price incl. VAT

19

ASM. OIL PUMP

1205244

£527,51 Unit Price incl. VAT

20

GEROTOR-4065 18MM

2521540

£52,22 Unit Price incl. VAT

21

PIN-SOLID M4X15.8

3022308

£6,55 Unit Price incl. VAT

22

TUBE-OIL SCAVENGE

2521557

£111,56 Unit Price incl. VAT

23

O-RING

5413837

£6,76 Unit Price incl. VAT

24

SEAL-OIL PICKUP

3610253

£12,72 Unit Price incl. VAT

25

ASM. OIL PICKUP

2521552

£39,17 Unit Price incl. VAT

26

SCREW-SHFL M6X1.0X20 RIE SP

7520518

£5,24 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
