1
Engine displacement
1720
2
Year
2012
3
Trim
chief-classic-vintage-dark-horse
4
Parts Catalog

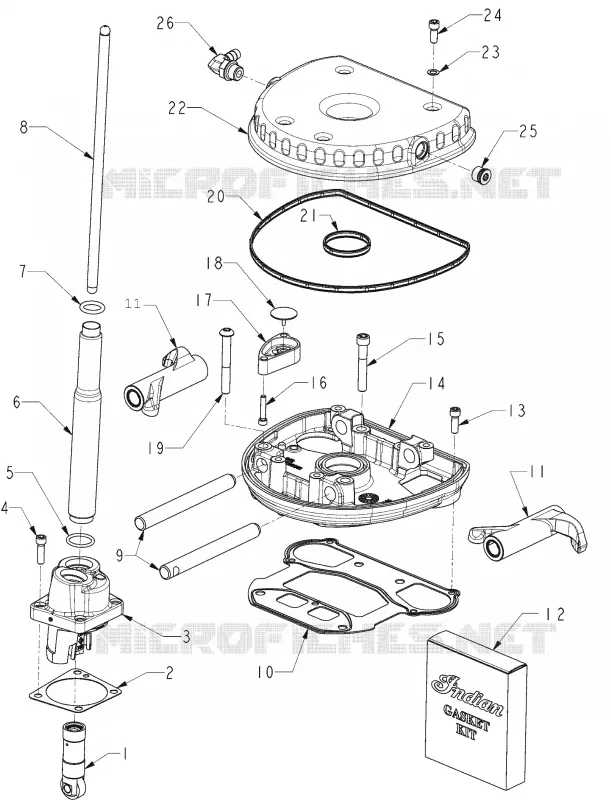

ENGINE, ROCKER ARM ASSEMBLY AND PUSH RODS
5
Parts Diagram
Parts Catalog
REAR WHEEL ASSEMBLY
by
STARTER MOTOR
ENGINE, ROCKER ARM ASSEMBLY AND PUSH RODS
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Lifter Hydraulic
N10900004
Not Available
2
Gasket Front Lifter Block
N10601179
Not Available
2
Gasket Rear Lifter Block
N10601178
Not Available
3
Block Front Lifter [Vintage]
N10901926
Not Available
3
Block Rear Lifter [Classic Dark Horse]
N10900006
Not Available
3
Block Rear Lifter [Vintage]
N10901925
Not Available
3
Block Front Lifter [Classic Dark Horse]
N10900005
Not Available
4
Screw
N70100016
Not Available
5
O-RIng .862 ID
N73000003
Not Available
6
Cover Pushrod
N10500006
Not Available
7
O-Ring .671 ID
N73000004
Not Available
8
Pushrod Front Exhaust
N10901931
Not Available
8
Pushrod Front Intake
N10901930
Not Available
8
Pushrod Rear Intake
N10901932
Not Available
8
Pushrod Rear Exhaust
N10901933
Not Available
9
Shaft Rocker
N10901199
Not Available
10
Gasket Rocker Box
N10600001
Not Available
11
Set Rocker Arm [Incl. all 4]
N10900000
Not Available
12
Kit Gasket Top End
N90100008
Not Available
12
Kit Gasket [Incl. 1-4]
N90100011
Not Available
13
Screw
N70100007
Not Available
14
Box Lower Rocker
N10201308
Not Available
15
Screw
N70100006
Not Available
16
Screw
N70100001
Not Available
17
Housing Breather Rear
N10200004
Not Available
17
Housing Breather Front
N10200003
Not Available
18
Valve Umbrella
N11201318
Not Available
19
Screw
N70100009
Not Available
20
Seal Rocker Box
N10601259
Not Available
21
Seal Chimney
N10601260
Not Available
22
Box Top Rocker
N10200002
Not Available
23
Seal Underwasher
N10601924
Not Available
24
Screw
N70100008
Not Available
25
Plug
N71100003
Not Available
26
Fitting 90 Degree
N71600007
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
