1
Engine displacement
1720
2
Year
2012
3
Trim
chief-classic-vintage-dark-horse
4
Parts Catalog
PISTONS AND CRANKSHAFT
5
Parts Diagram
Parts Catalog
ELECTRICAL, FRONT TURN SIGNALS AND PASSING LAMPS
by
SWING ARM ASSEMBLY

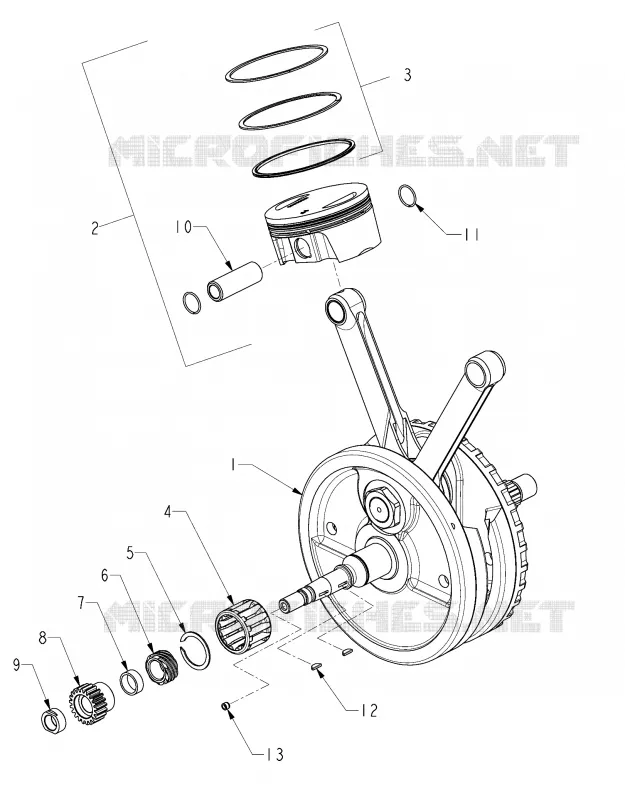

PISTONS AND CRANKSHAFT
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Asm. Crankshaft
N10701030
Not Available
2
Asm. Piston [Incl. Wrist Pin]
N10301110
Not Available
3
Set Piston Ring STD
N10301120
£141,29 Unit Price incl. VAT
4
Bearing Main RH White
N71301014
Not Available
4
Bearing Main RH Blue
N71300006
Not Available
4
Bearing Main RH Red
N71300008
Not Available
4
Bearing Main RH Green
N71300007
Not Available
5
Ring Retaining
N70501059
Not Available
6
Gear Drive
N11001048
Not Available
7
Spacer Drive Gear
N10801049
Not Available
8
Gear Pinion
N10801068
Not Available
9
Nut Pinion Shaft
N10701064
Not Available
10
Regulator Fuel Pressure
*********
Not Available
11
Ring Ret. C-Clip
N10301093
Not Available
12
Key Wookruff #304
N72900000
Not Available
13
Plug Pinion Shaft 080
N10700008
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
