1
Engine displacement
1720
2
Year
2012
3
Trim
chief-classic-vintage-dark-horse
4
Parts Catalog

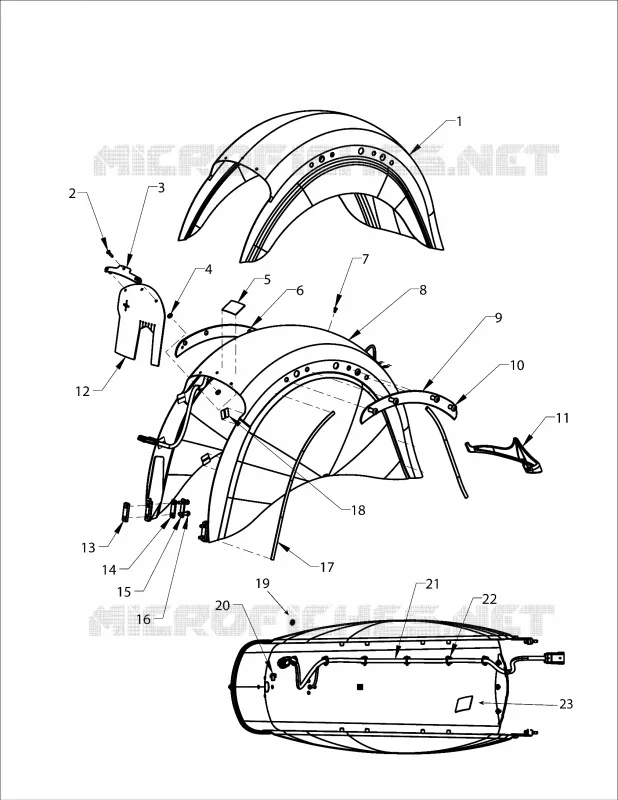

REAR FENDER ASSEMBLY
5
Parts Diagram
Parts Catalog
FUEL SYSTEM, EVAP SYSTEM (CA)
by
CHASSIS, FOOTPEGS AND FLOORBOARDS
REAR FENDER ASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Fender Rear Short BLK SLV PS [Classic]
N52800030
£895,92 Unit Price incl. VAT
1
Fender Rear Short Red GLD PS [Classic]
N52800031
Not Available
1
Kit Short Rear Fender Hdwr
N90500300
Not Available
2
Rivet
N70996194
Not Available
3
Strap Splash Guard
N51190618
Not Available
4
Washer Alum
N70496333
Not Available
5
Pad Side Battery Box
N70700003
Not Available
6
Eyebrow Fender Trim Right [Classic Dark Horse]
N51100031
Not Available
6
Regulator Fuel Pressure
*********
Not Available
6
Asm. Eyebrow Spacer RH
N51100020
Not Available
7
Rivet Nylon
N71100009
Not Available
8
Fender Rear Long BLK
N52800010
£607,23 Unit Price incl. VAT
8
Fender Rear Long BLK and SLVR [Vintage]
N52800207
£1 493,21 Unit Price incl. VAT
8
Fender Rear Long Red and CRM [Vintage]
N52800013
£731,67 Unit Price incl. VAT
8
Fender Rear Long BLK SMK [Dark Horse]
N52800177
£1 194,56 Unit Price incl. VAT
8
Fender Rear Long TURQ and WHT [Vintage]
N52800018
£731,67 Unit Price incl. VAT
8
Kit Long Rear Fender Hdwr
N90500304
£27,28 Unit Price incl. VAT
8
Fender Rear Long Red
N52800011
£607,23 Unit Price incl. VAT
8
Fender Rear Long GRN and CRM [Vintage]
N52800019
£826,24 Unit Price incl. VAT
9
Asm. Eyebrow Spacer LH
N51100016
Not Available
9
Eyebrow Fender Trim Left [Classic Dark Horse]
N51100030
Not Available
10
Screw
N70100022
Not Available
11
Asm. Tip Rear Fender [Vintage]
N90500333
£71,09 Unit Price incl. VAT
11
Pad Adhesive Rr Fender Tip
N90500163
Not Available
12
Guard Splash Rear Fender
N51126429
Not Available
13
Isolator Rear Fender [Vintage Dark Horse]
N51116239
Not Available
14
Isolator Rear Fender [Vintage Dark Horse]
N51126537
Not Available
15
Spacer Fender Brkt. [Vintage Dark Horse]
N51126536
Not Available
16
Screw [Vintage Dark Horse]
N70126535
Not Available
17
Trim Fender Chrome [6 ft] [Vintage Dark Horse]
N51129108
£4,96 Unit Price incl. VAT
18
Pad Anti-Rattle Rear Fender [Vintage Dark Horse]
N51126538
Not Available
19
Washer
N70400054
Not Available
20
Clip Harness Retention
N71000002
Not Available
21
Harness Jumper Taillight
N60400001
Not Available
22
Zip-Tie w/T-Stud Base
N71096260
Not Available
23
Dual Lock 1x.5
N72600014
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
